Rockford Fosgate Power T750X1bd Review: Small Amp, 1-Ohm Power

The Rockford Fosgate Power T750X1bd is a 750-watt Class-BD mono amplifier built to power subwoofers from a chassis that measures 1.6 by 4.3 by 8.3 inches. This Rockford Fosgate Power T750X1bd review looks at whether its rated output at 1 ohm, its small body and its $549.99 USD price add up to a good purchase. It suits tight installs and low-impedance subwoofer wiring well, but buyers who only need 500 to 800 watts and have room to spare can spend far less.

Rockford lists the T750X1bd as a current Power Series product, and no successor is confirmed in the sources reviewed. All power figures below are Rockford Fosgate's published ratings unless another source is named.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

Design and build of the Rockford Fosgate Power T750X1bd

Rockford's product page gives the chassis size as 1.6 by 4.3 by 8.3 inches (4.1 by 10.8 by 21.1 cm) and the shipping weight as 3.44 pounds (1.56 kg). Shipping-carton dimensions differ from chassis dimensions, so mounting space should be planned from the chassis figures.

The manufacturer describes extruded aluminum heat sinks, dual fans and a three-stage airflow path, along with real-time thermal sensing that rolls back output when the amplifier runs hot. The owner's manual asks for at least 1 inch (2.54 cm) of air gap around the heat sink and says the floor of a trunk gives the best cooling. Mounting in the engine compartment is not allowed and voids the warranty.

Controls sit on top of the case, and the power, remote and speaker connections use detachable compression terminals. The power and ground terminal takes wire up to 8 AWG, and the speaker terminal takes 10 AWG. Rockford also says the circuit board uses discrete surface-mount parts with 1% tolerances, and it positions the amplifier for hybrid and electric vehicles, small cars, trucks, motorcycles and side-by-side UTVs.

Features and controls on the Rockford Fosgate Power T750X1bd

Signal comes in through a four-pin harness that accepts RCA or speaker-level connections. Rockford lists an input sensitivity range of 150 mV to 12 V and describes differential inputs meant to reject noise picked up by signal cables. With a speaker-level signal, the amplifier turns on automatically, and its remote terminal becomes an output that can switch up to two more amplifiers or accessories, according to the manual.

The C.L.E.A.N. circuit pairs an input clip LED with an output clip LED that changes color with distortion level. Rockford's legend lists blue for under 0.5% THD, violet for 1% and red for 10% or more. The manual sets gain with speakers disconnected, using a 40 Hz tone for mono amplifiers.

Tone shaping stays limited to what a subwoofer needs: a variable low-pass filter from 50 Hz to 250 Hz at 12 dB per octave, and a Punch EQ boost of 0 to +18 dB at 45 Hz. The manual warns that high boost levels can cause over-excursion and damage. Rockford's product page also lists a fixed 28 Hz infrasonic filter, but the owner's manual describes that filter only under a different model in the same manual. Buyers who rely on it should confirm it with Rockford or a dealer first.

An optional PLC2 wired remote adds dash-mounted level control, and remotes made before 2013 are not compatible, per the manual. The specification table shows no signal output, so the amplifier cannot pass an RCA signal on to another amplifier. Shoppers comparing sellers can look over the Rockford Fosgate Power T750X1bd on Amazon alongside a matching wiring kit.

Rated power and calculated figures for the Rockford Fosgate Power T750X1bd

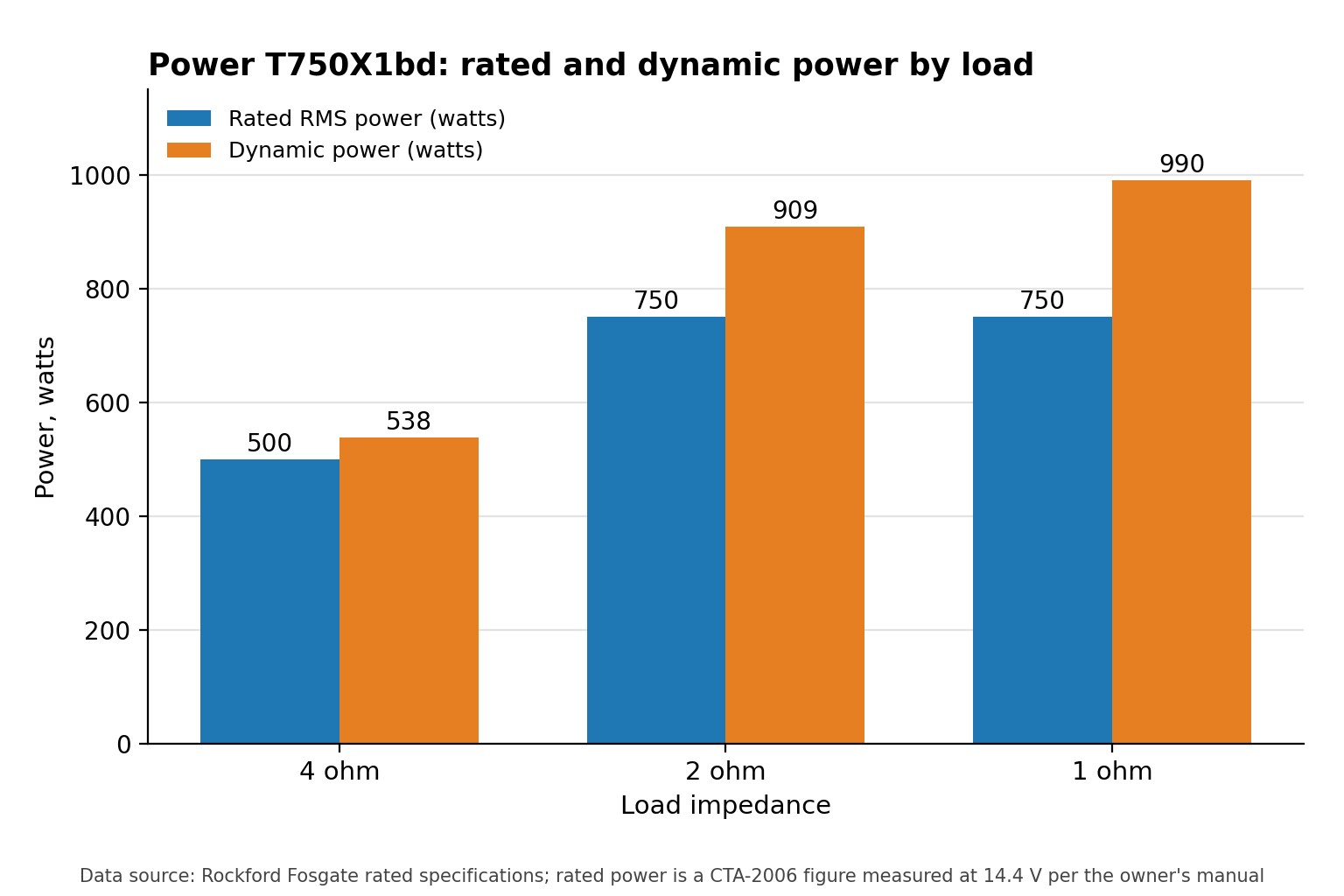

Rockford rates continuous power at 500 watts RMS into 4 ohms and 750 watts into both 2 ohms and 1 ohm, with THD+N under 1.0% at each load (above 35 Hz at 1 ohm). The owner's manual says the ratings follow the CEA-2006 standard and were measured at 14.4 volts. Crutchfield's summary of that standard explains that RMS power is measured at 1 percent THD plus noise, which is why the 1% figure matters when comparing amplifiers.

Load	Rated RMS power	Dynamic power	Dynamic as a multiple of rated (calculation)
4 ohm	500 W	538 W	1.08 times
2 ohm	750 W	909 W	1.21 times
1 ohm	750 W	990 W	1.32 times

The calculated column shows how much extra output Rockford's dynamic-power figures claim over the continuous ratings. The ratings also show a pattern worth knowing before choosing a subwoofer wiring: continuous power rises 50% from 4 ohms to 2 ohms, then stays flat at 750 watts from 2 ohms to 1 ohm. Dropping to 1 ohm adds wiring options, not rated output. Dynamic power still rises about 9% over that last step, from 909 to 990 watts.

Rockford says its Constant Power design raises output by up to 25% across varying impedance loads. It gives the frequency response as 20 Hz to 230 Hz at plus or minus 1 dB and the average efficiency as above 85%. The manual adds a common-mode rejection ratio above 70 dB and a 20k ohm input impedance. Our research found no independent lab measurements for this model.

Power draw is the other half of the numbers. Rockford lists a maximum current draw of 86 A at 13.8 V with a sine wave. That works out to about 1,187 watts of input power, a calculation from the published figure (13.8 V times 86 A). The recommended 100 A fuse leaves 14 A of margin above that draw. The manual advises checking the battery and alternator before adding any amplifier, and the product page lists an operating voltage range of 9 to 16 VDC.

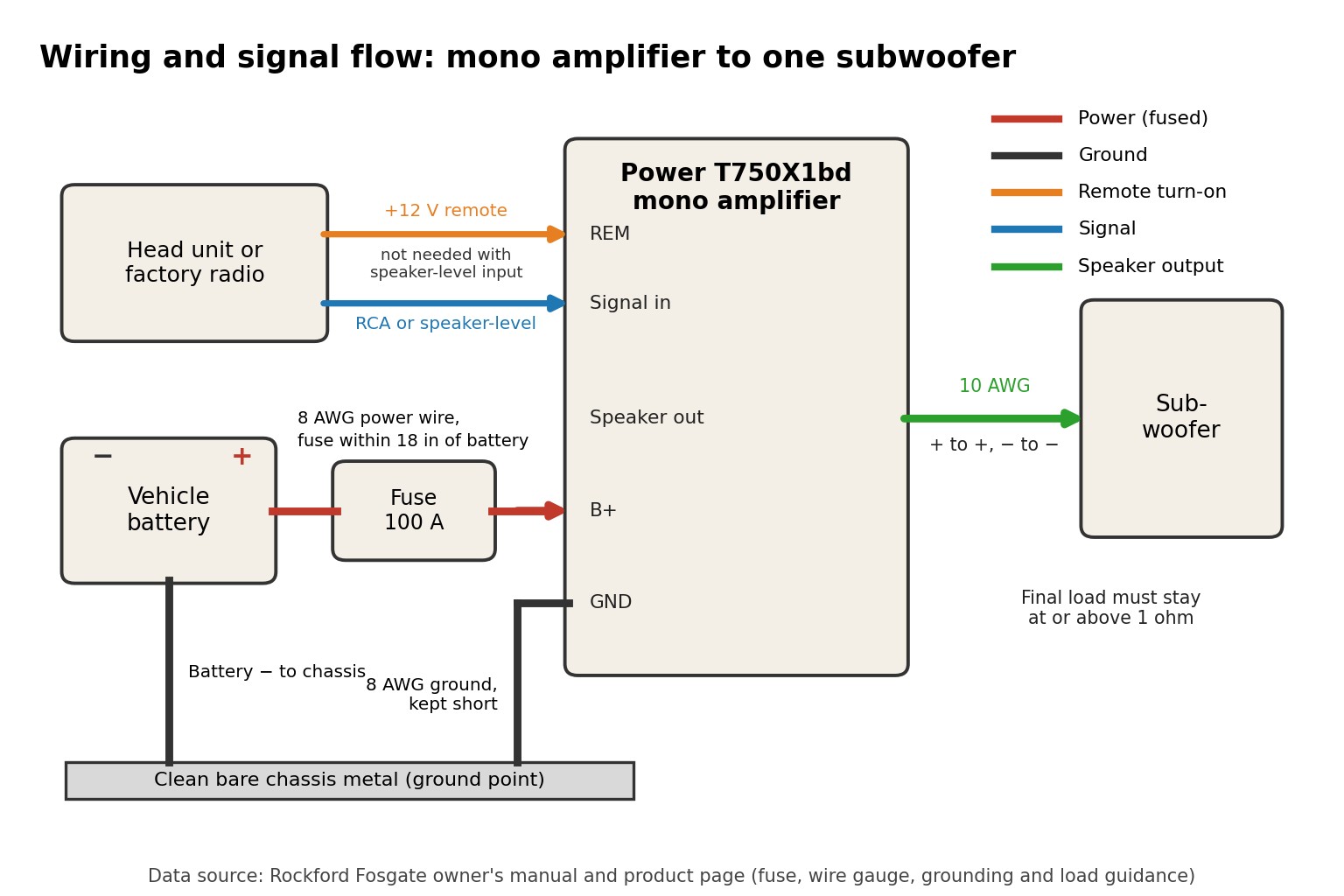

Installing the Rockford Fosgate Power T750X1bd: wiring, fuse and safety

The owner's manual starts with disconnecting the battery negative terminal. The positive power cable needs a fuse within 18 inches (45.7 cm) of the battery, and Rockford lists 100 A as the fuse rating. The ground wire should stay under 30 inches, run to bare metal welded to the vehicle body, and never use a seatbelt bolt. On ATVs, golf carts and motorcycles, Rockford recommends running both the positive and ground cables straight to the battery.

Wire length matters at this current. The table below is a calculation, not a Rockford figure. It assumes copper 8 AWG cable at 20 degrees Celsius carrying the 86 A maximum draw from the specification, and it shows the voltage lost across the combined length of the power and ground runs. The result is a worst case because it assumes the maximum draw is sustained.

Power plus ground length	Voltage drop at 86 A	Share of 13.8 V
8 ft (2.4 m)	0.42 V	3.1%
12 ft (3.7 m)	0.63 V	4.6%
18 ft (5.5 m)	0.95 V	6.9%
24 ft (7.3 m)	1.26 V	9.2%

Fitment checklist

• Final subwoofer load of 1 ohm or higher. The manual does not recommend loads below 1 ohm for mono amplifiers.
• Subwoofer RMS handling that fits the amplifier rating at the chosen load: 500 watts at 4 ohms, 750 watts at 2 ohms or 1 ohm.
• Wiring math for the final load: one 1-ohm single-coil subwoofer, one 2-ohm dual-coil subwoofer with its coils in parallel, or two 2-ohm single-coil subwoofers in parallel each reach 1 ohm. One 4-ohm dual-coil subwoofer with its coils in parallel reaches 2 ohms.
• Power and ground wire no thicker than 8 AWG at the terminal, since that is the stated maximum.
• Factory-radio integration: Rockford's advisory for the PAC AP4-FD21 interface in select Ford vehicles lists the T750X1bd among compact Power amplifiers that need the interface set to 4 V output (the default is 5 V) and gains set with the C.L.E.A.N. procedure to avoid a high noise floor.

Rockford Fosgate Power T750X1bd vs similar compact mono amps

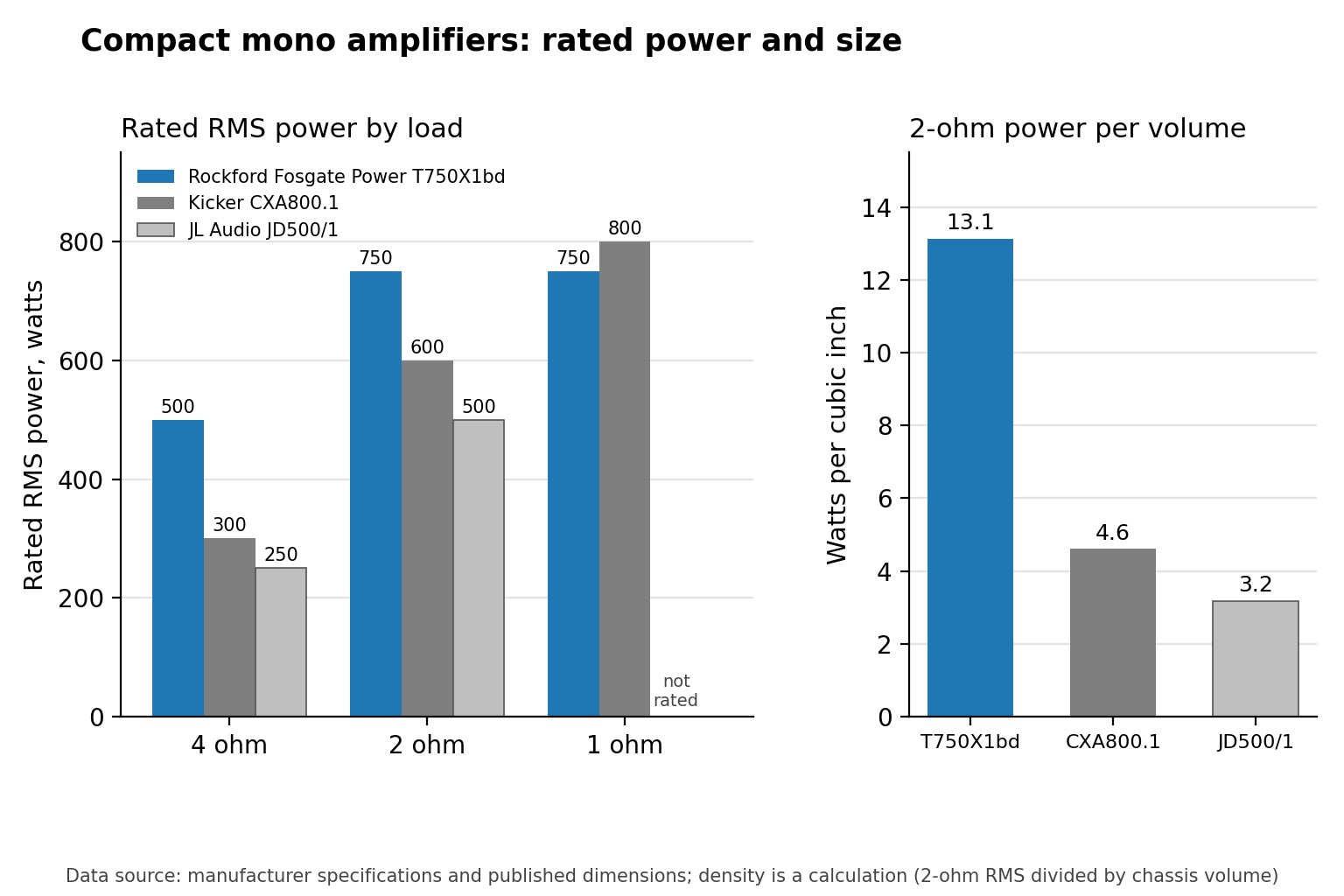

Two compact Class-D mono amplifiers make a fair comparison: the Kicker CXA800.1 and the JL Audio JD500/1. Both aim at subwoofer duty with similar power ratings, and both cost $299.99 USD, which is $250 less than the Rockford Fosgate Power T750X1bd.

Specification	Rockford Fosgate Power T750X1bd	Kicker CXA800.1	JL Audio JD500/1
Rated RMS power at 4 / 2 / 1 ohm	500 / 750 / 750 W	300 / 600 / 800 W	250 / 500 W / not rated
Amplifier class	BD	D	D
Dimensions (W x D x H)	4.3 x 8.3 x 1.6 in	6.8 x 8.1 x 2.4 in	9.9 x 7.5 x 2.1 in
Chassis volume (calculation)	57 cu in	130 cu in	157 cu in
2-ohm watts per cubic inch (calculation)	13.1	4.6	3.2
Low-pass range	50 to 250 Hz	50 to 200 Hz	50 to 500 Hz
Bass boost	0 to +18 dB at 45 Hz	0 to 6 dB at 40 Hz	0 to 12 dB at 45 Hz
Price (USD)	$549.99	$299.99	$299.99
Warranty	2 years	2 years	2 years

The Kicker CXA800.1 posts the highest 1-ohm rating of the three at 800 watts, adds full-range outputs and carries a 24 dB per octave subsonic filter at 25 Hz. The JL Audio JD500/1 has no 1-ohm rating, so it suits 2-ohm or 4-ohm setups, and it adds preamp outputs and a wired remote option. The Rockford Fosgate Power T750X1bd leads at 4 ohms and 2 ohms and in power per cubic inch, which is the case for choosing it when space is the limit.

Who should buy the Rockford Fosgate Power T750X1bd, and who should skip it

Buyers who gain the most are those with limited mounting space, such as under a seat, behind a panel or on a motorcycle or UTV, and those planning one or two subwoofers that wire down to 1 or 2 ohms. The clip LEDs, speaker-level input with auto turn-on and optional dash remote also suit factory-radio systems where a remote lead is hard to find. Anyone who fits that profile can open the T750X1bd page on Amazon to see seller details.

Skip it if cost per rated watt matters most. At 2 ohms the Rockford costs about $0.73 per rated watt, against $0.50 for the Kicker CXA800.1 and $0.60 for the JL Audio JD500/1, calculated from the prices and ratings in the table above. Skip it as well for loads below 1 ohm, for systems that need a pass-through signal output, for 4 AWG power cable going straight into the terminal, or for anyone who wants third-party measured results before spending $549.99 USD.

Price and pre-purchase checks

Rockford Fosgate sells the T750X1bd at $549.99 USD. Prices change often, so check the current listing.

Before buying, shoppers should settle these points:

• Model prefix: Rockford's support documents also cover a TM750X1bd, so confirm the exact model is T750X1bd.
• Condition: the manual lists a 90-day warranty for factory refurbished products, against two years for new Power amplifiers.
• Seller: the manual limits warranty coverage to products bought from authorized dealers in the United States, so dealer status is worth confirming on Rockford's dealer locator.
• Wiring kit: Rockford adds a third year of warranty when a matching Rockford installation kit is used, and the fuse is not included. The kit model and wire gauge should be checked before ordering.
• Accessories: the PLC2 remote is sold separately.

For shoppers who prefer to compare sellers in one place, the Rockford Fosgate T750X1bd listing on Amazon is one option to check against the points above.

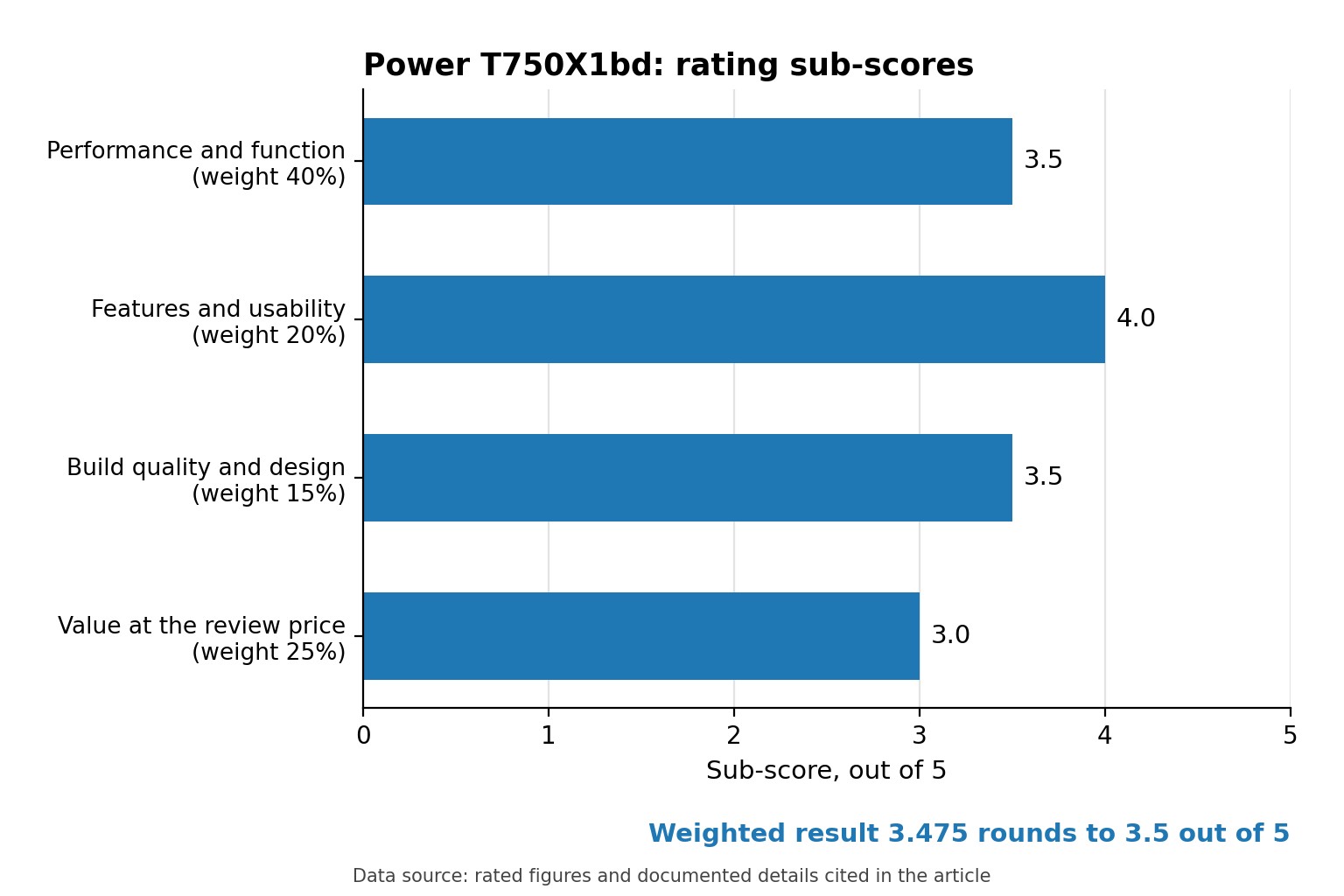

Rating and score breakdown for the Rockford Fosgate Power T750X1bd

The final rating is 3.5 out of 5. The sub-scores follow the weights in the table, and the weighted sum is 3.475, which rounds to the nearest half point.

Area	Weight	Score	Weighted points
Performance and function	40%	3.5	1.400
Features and usability	20%	4.0	0.800
Build quality and design	15%	3.5	0.525
Value at the review price	25%	3.0	0.750
Total	100%		3.475, rounded to 3.5

Performance and function scores 3.5 because the rated figures are strong for the size, while no independent measurements turned up and the 1-ohm rating adds no output over 2 ohms. Features and usability earns 4.0 for clip LEDs, flexible inputs, auto turn-on, the crossover and the remote option, held back by the missing pass-through output. Build quality and design scores 3.5 on the compact extruded chassis, dual-fan cooling and detachable terminals, with the 8 AWG terminal limit and the 1 inch clearance requirement as limits. Value scores 3.0 because the price sits well above peers with similar or higher ratings.

Our research score is based on the rated figures and documented details above.

Sources and further reading

1. Rockford Fosgate T750X1bd product page: specifications, features, price and warranty extension.
2. Rockford Fosgate installation and operation manual (PDF): rating conditions, fusing, mounting, setup steps and warranty terms.
3. Rockford Fosgate support page for the compact Power amplifier manual: model coverage and manual download.
4. Rockford Fosgate advisory on the PAC AP4-FD21 interface: noise-floor settings for select Ford vehicles.
5. Kicker CXA800.1 product page: competitor ratings, features, dimensions and price.
6. JL Audio JD500/1 specifications at Pacific Stereo: competitor ratings and features.
7. JL Audio JD500/1 page at Sound of Tri-State: competitor dimensions, price and warranty.
8. Crutchfield summary of the CEA-2006 amplifier standard: how RMS power ratings are measured.
