Rockford Fosgate Prime R2-200X2 Review: Compact, Few Extras

The Rockford Fosgate Prime R2-200X2 is a compact Class D two-channel amplifier for a pair of speakers or a single subwoofer, and this Rockford Fosgate Prime R2-200X2 review finds it worth buying if a small chassis and simple gain setup matter more than headline power. Rockford Fosgate rates it at 50 watts RMS per channel at 4 ohms, 100 watts per channel at 2 ohms and 200 watts bridged at 4 ohms. It is a current product in the third-generation Prime R2 range, and no successor model is confirmed.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

Rockford Fosgate Prime R2-200X2 design and build

The spec sheet gives the amplifier a 1.9 in height, a 6.8 in width and an 8.1 in depth, which is among the smaller footprints for a 200 watt amplifier. Rockford Fosgate describes a cast aluminum heat sink with convection cooling and a top-mounted control panel. Its R2 manual asks for at least 1 in of air gap around the amplifier and warns that mounting it in the engine compartment voids the warranty.

Protection includes short-circuit and over-current circuits. Rockford Fosgate’s NOMAD circuit is described as guarding against shorted speaker wires and dangerously low impedance, and a red Protect LED shows a fault. The spec sheet lists compression-style power and speaker terminals, with 4 AWG listed for power wire and 8 AWG for speaker wire.

Crutchfield describes the R2-200X2 as the replacement for the earlier Prime R150X2.

R2-200X2 features and usability

The R2-200X2 accepts two RCA inputs or a 4-pin Molex high-level input, so a factory radio without RCA outputs can feed it directly. Rockford Fosgate publishes input sensitivity of 150 mV to 4 V on the low-level inputs and 450 mV to 12 V on the high-level input, with balanced differential inputs to reject noise. Two RCA pass-through outputs work with either input type and can feed a second amplifier. An auto-sense bypass switch helps in vehicles with retained accessory power.

One crossover covers the whole amplifier. It offers high-pass, low-pass or all-pass settings at 12 dB per octave (Butterworth), adjustable from 50 Hz to 250 Hz. For a subwoofer pair or a bridged load, the manual suggests 50 Hz to 80 Hz, and for midrange drivers it suggests 80 Hz to 120 Hz.

Gain setting uses the C.L.E.A.N. indicators, and the manual’s method runs in this order:

1. Disconnect the speakers and set the amplifier gain to its minimum.
2. Set the radio’s tone controls flat and loudness off, then raise the radio volume until the C.L.E.A.N. IN light turns red. Back off until it goes dark.
3. At that radio volume, raise the amplifier gain until C.L.E.A.N. OUT turns red, then back off until it goes dark.

Several features common on rival amplifiers are absent. Rockford Fosgate lists no remote level control and no tone controls, and the manual lists Punch EQ bass boost as not applicable to this model. Some retailer descriptions repeat a Punch EQ claim, so treat that line as an error.

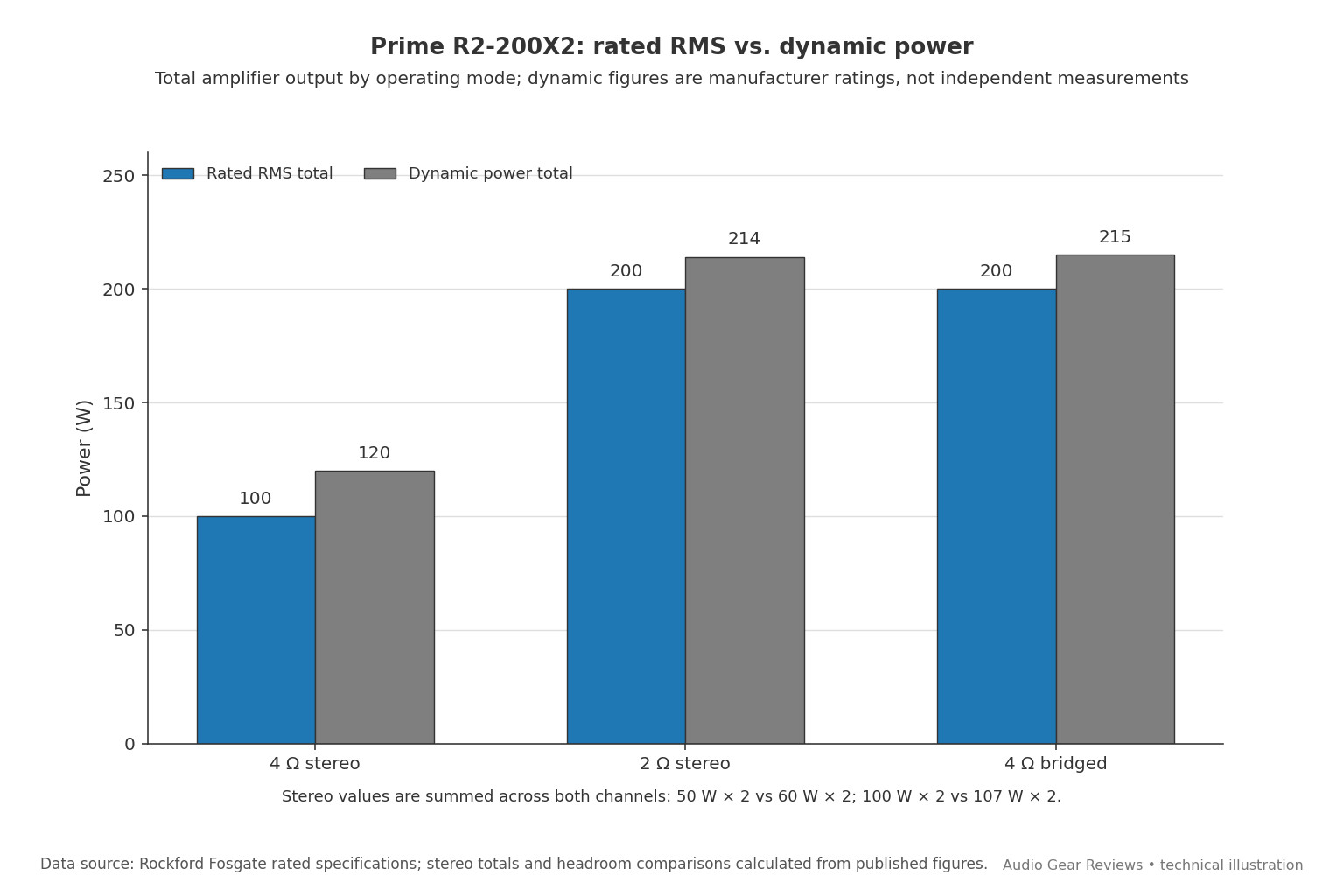

Rockford Fosgate Prime R2-200X2 rated power and calculated figures

Our research found no independent lab measurements for this model. Everything below comes from Rockford Fosgate’s ratings or from calculations based on them. The manufacturer says the ratings follow CTA-2006 at 14.4 V. The CTA-2006 standard defines how in-vehicle amplifier power is measured, which keeps ratings at 14.4 V comparable between brands.

Mode	Rated RMS	Dynamic power	Total rated	Dynamic headroom (calculated)	Rated output voltage (calculated)
4 ohm stereo	50 W x 2	60 W x 2	100 W	0.8 dB	14.1 V RMS
2 ohm stereo	100 W x 2	107 W x 2	200 W	0.3 dB	14.1 V RMS
4 ohm bridged	200 W x 1	215 W x 1	200 W	0.3 dB	28.3 V RMS

Headroom is ten times the base-10 logarithm of dynamic power divided by rated power, and output voltage is the square root of power times load. The 2 ohm rating is double the 4 ohm rating, a gain of 3.0 dB, and the amplifier reaches the same 14.1 V RMS in both cases. The dynamic ratings add little over the rated figures at 2 ohms and bridged, so plan around the RMS numbers.

The other published figures are a frequency response of 20 Hz to 20 kHz, THD+N under 1.0 percent at both 4 ohms and 2 ohms, and a signal-to-noise ratio above 80 dB. Rival makers quote different reference conditions, such as Kicker’s 95 dB figure for its KXA400.2 alongside a CEA-2006 figure of 75 dB at 1 W, so signal-to-noise numbers across brands should not be compared directly. Rockford Fosgate also says its P.O.W.E.R. supply raises output as supply voltage rises, though it publishes no figures for that.

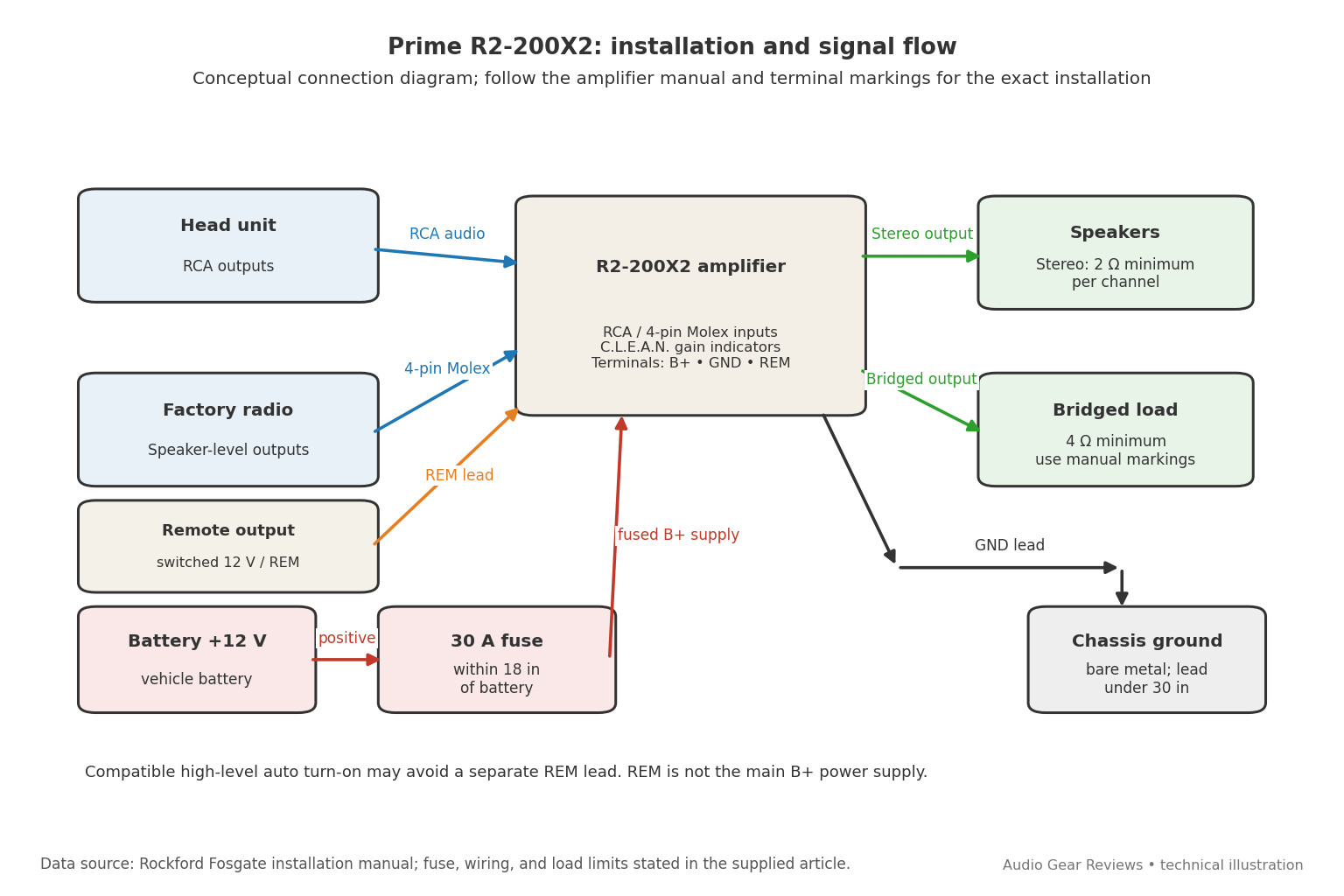

Installing the R2-200X2: wiring, fuse and fitment

Rockford Fosgate’s specification calls for a 30 A fuse (not included), and the spec sheet lists 4 AWG power wire. The manual requires the fuse within 18 in of the battery, a ground lead under 30 in attached to bare metal, and RCA cables routed away from power wiring.

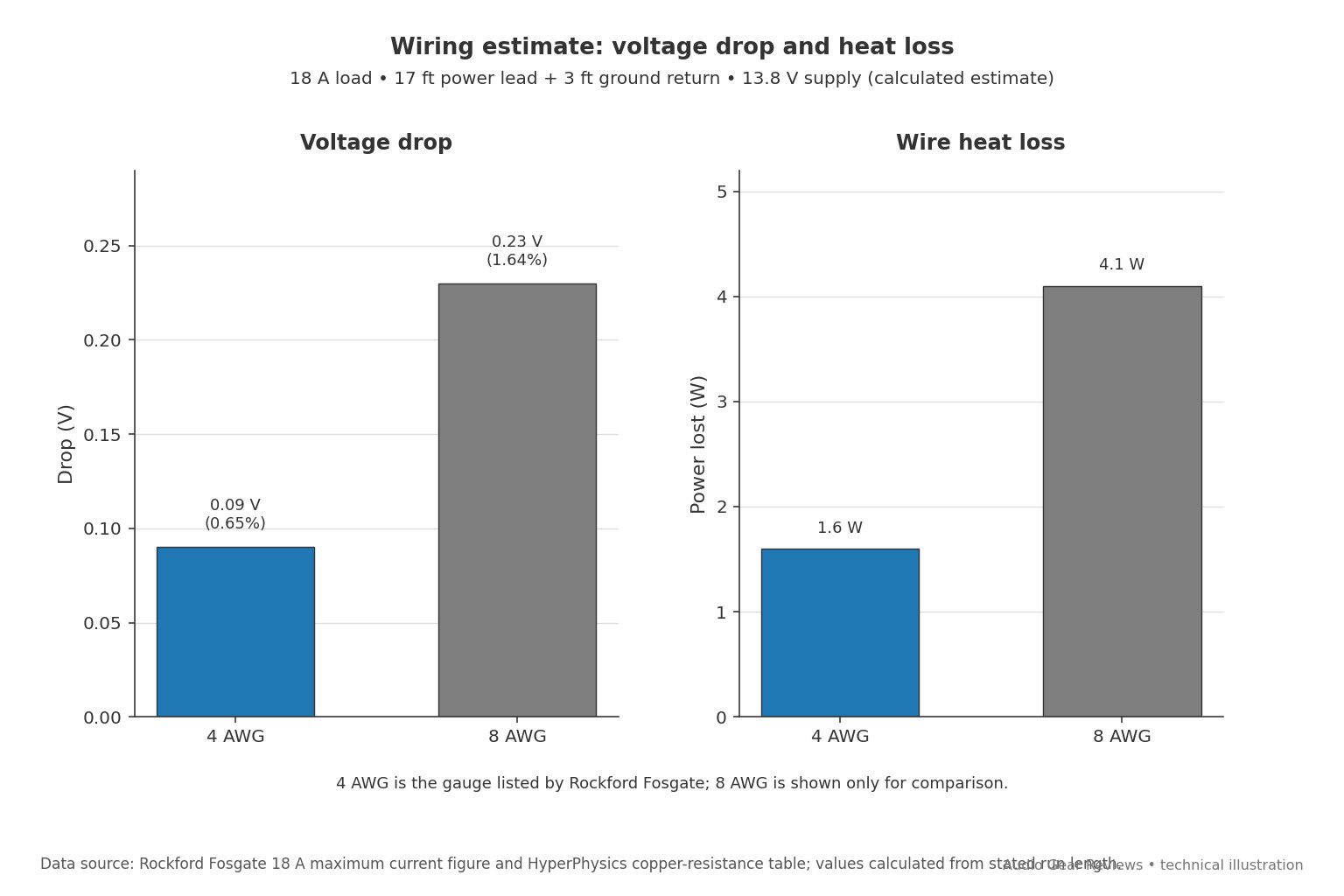

The amplifier’s 18 A maximum draw keeps wire losses small. Using a 17 ft power run and a 3 ft ground, matching the length of Rockford Fosgate’s RFK4X kit, a calculation with published copper resistance gives a drop of 0.09 V (0.65 percent of 13.8 V) in 4 AWG and 0.23 V (1.64 percent) in 8 AWG. The heavier wire wastes 1.6 W as heat against 4.1 W. Both losses are small, but the manufacturer lists 4 AWG, so use that gauge unless the installer has a reason to change it.

Use this fitment checklist before buying:

• Electrical load: 18 A at 13.8 V is up to 248 W of input power, and the 30 A fuse sits 1.67 times above that draw.
• Speaker load: the amplifier is rated for 2 ohms stereo and 4 ohms bridged. Two 4 ohm speakers wired in parallel on one channel present 2 ohms.
• Radio type: a factory radio without RCA outputs works through the Molex high-level input, and auto turn-on only functions on that route. The spec sheet leaves the box contents blank, so confirm that the Molex plug is included.
• Wiring kit: Rockford Fosgate’s RFK4X page lists 17 ft of 4 AWG power wire, 3 ft of 4 AWG ground wire, one 16 ft RCA cable and a Maxi fuse holder with a 100 A fuse. That fuse is far above the amplifier’s 30 A rating, so confirm which fuse you install.
• Bridged use: bridging gives one 4 ohm mono channel rated at 200 W, and the amplifier is not rated for loads below 4 ohms in that mode.

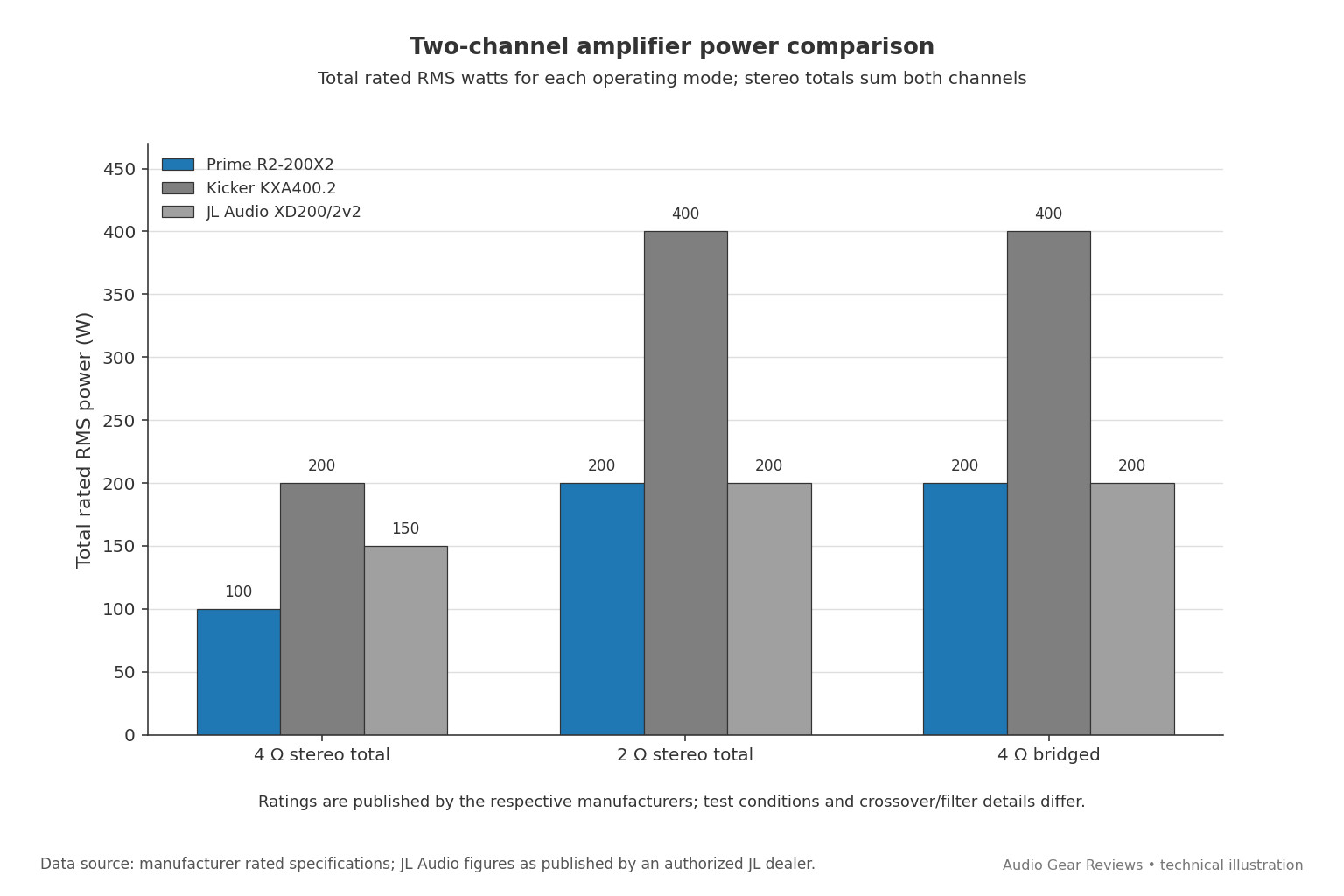

How the Rockford Fosgate Prime R2-200X2 compares with rivals

Two comparable two-channel Class D amplifiers are the Kicker KXA400.2 and the JL Audio XD200/2v2. The Kicker is rated for twice the R2-200X2 at every load, while the JL Audio matches its 2 ohm and bridged ratings and adds 25 W per channel at 4 ohms.

Specification	Prime R2-200X2	Kicker KXA400.2	JL Audio XD200/2v2
Amplifier class	Class D	Class D	Class D
RMS per channel, 4 ohm	50 W	100 W	75 W
RMS per channel, 2 ohm	100 W	200 W	100 W
Bridged, 4 ohm	200 W	400 W	200 W
High-level inputs	Yes, 4-pin Molex	Yes	Yes, speaker-to-RCA adapter needed
Crossover	50 Hz to 250 Hz, 12 dB/octave	HP 10 Hz to 500 Hz, LP 40 Hz to 500 Hz, 24 dB/octave	50 Hz to 500 Hz, 12 dB/octave
Bass boost	None	0 to 18 dB at 40 Hz	Not listed
Remote level control	No	Not confirmed	Optional HD-RLC
Height	1.9 in	2.1 in	2.0 in
Footprint (calculated)	55.1 sq in	79.5 sq in	49.0 sq in

Kicker lists the KXA400.2 at $329.95 USD, which works out to $1.65 per rated watt at 4 ohms with both channels driven, against $2.40 for the R2-200X2. The Rockford Fosgate is the smallest-power choice of the three, and its crossover range is the narrowest. Its advantages are the lower price, the Molex high-level input and the clip-light setup method. The JL Audio is the most compact of the group.

Who should buy the R2-200X2 and who should skip it

Buy it if you want a small amplifier for two door speakers rated around 50 W to 100 W RMS, or for one modest subwoofer on a bridged 4 ohm load, and your radio lacks RCA outputs. It also suits drivers who want the option of a two-year warranty. See the current Prime R2-200X2 listing on Amazon if that profile fits.

Skip it if you want a bass boost or a remote level knob, since neither is offered. Skip it if your speakers need more than 50 W each at 4 ohms, because the Kicker and JL Audio publish higher 4 ohm ratings. A bridged 200 W is also modest for a large subwoofer, and a mono amplifier from the same range is better suited to that job.

Rockford Fosgate Prime R2-200X2 price and pre-purchase checks

The R2-200X2 costs $239.99 USD. Prices change often, so check the current listing. That works out to $2.40 per rated watt with both channels at 4 ohms and $1.20 per rated watt at 2 ohms. Wiring, fuse and mounting hardware are extra.

• Model name: confirm the “R2-” prefix, because the earlier Prime R150X2 is a different amplifier.
• Seller: Rockford Fosgate’s warranty covers only the original purchaser of a product bought from an authorized U.S. dealer, and the buyer must keep the receipt. Products bought outside the U.S. are covered by that country’s distributor.
• Warranty length: the amplifier carries one year, and a matching Rockford Fosgate installation kit adds a second year.
• Bass features: if you plan a subwoofer build, note that the amplifier has no bass boost, infrasonic filter or remote level control.

If you shop on Amazon, confirm that the seller is an authorized Rockford Fosgate dealer before relying on the warranty, and review the R2-200X2 seller details on Amazon first.

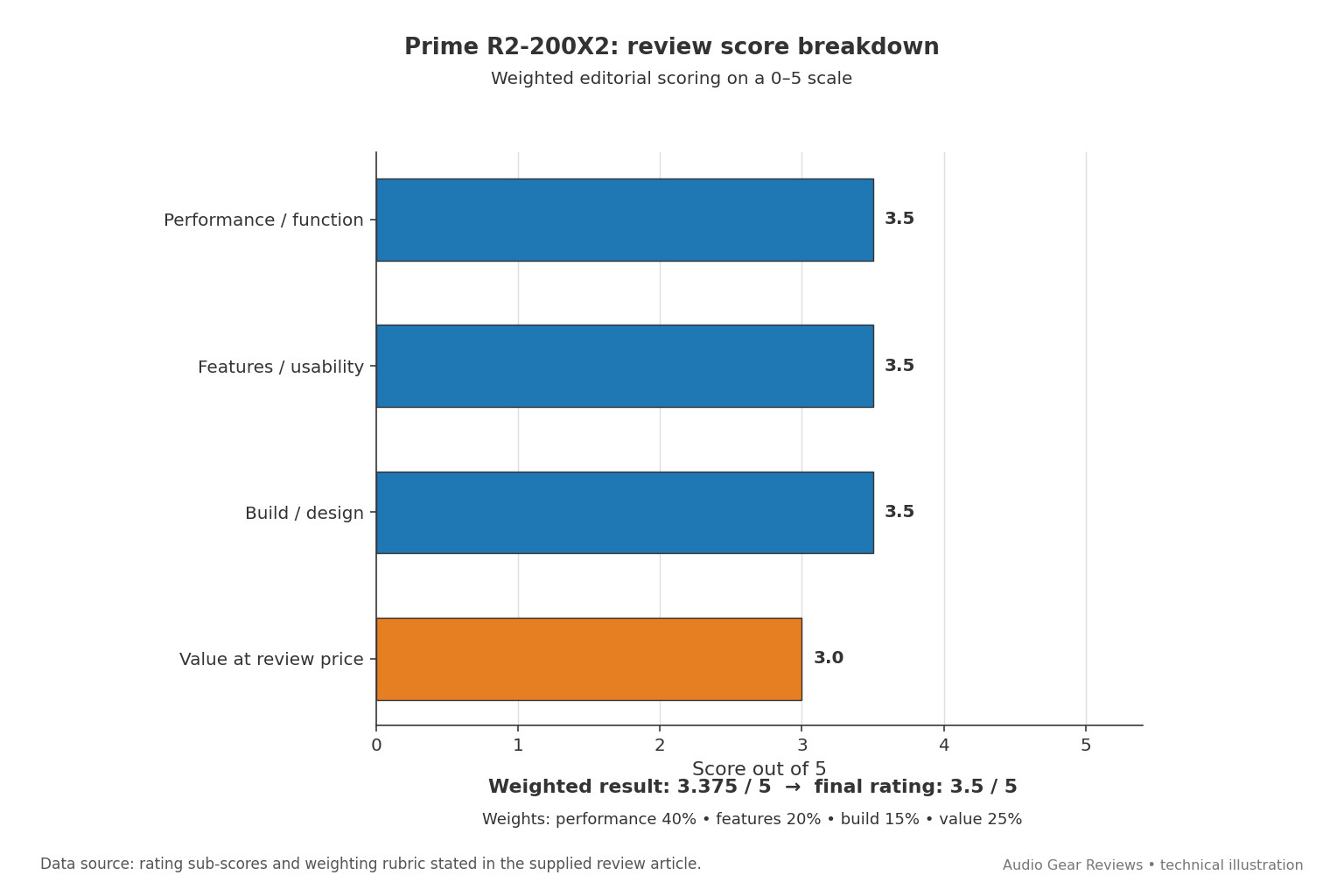

Rockford Fosgate Prime R2-200X2 rating explained

Area	Weight	Score	Contribution
Performance and sound/function	40%	3.5	1.400
Features and usability	20%	3.5	0.700
Build quality and design	15%	3.5	0.525
Value at the review price	25%	3.0	0.750
Weighted result	100%	3.375, rounded to 3.5 out of 5

Our research score is based on the rated figures and documented details above. Performance is held to 3.5 because the ratings are sound but no independent measurements exist. Features earn 3.5 for the input options and clip lights, offset by the missing bass boost and remote level control. Build scores 3.5 for the compact chassis and protection circuits, with limited published detail on internals. Value is 3.0 because a rival lists higher power at a higher price while this amplifier offers 50 W per channel at 4 ohms.

Sources and further reading

• Rockford Fosgate R2-200X2 product page: specifications, features, price and kit list.
• Rockford Fosgate R2 installation and operation manual: rated power conditions, wiring, fuse, mounting and gain setup.
• Rockford Fosgate RFK4X installation kit page: kit contents and fuse size.
• Rockford Fosgate extended warranty article: warranty terms and the matching-kit extension.
• Crutchfield R2-200X2 page: lifecycle note on the amplifier it replaces.
• Kicker KXA400.2 product page: rated power, crossover, bass boost, dimensions and price for that model.
• JL Audio XD200/2v2 at Onlinecarstereo: rated power, filter, inputs and dimensions for that model.
• HyperPhysics AWG wire table: copper resistance values used in the voltage-drop calculation.
• CTA-2006-D standard page: how in-vehicle amplifier power is measured.
