Rockford Fosgate R2-1200X1 Review: 1,200 W Mono Amp for 1-Ohm Subs

This Rockford Fosgate Prime R2-1200X1 review asks one question: is a 1,200-watt Class D monoblock at $449.99 (USD) a sound buy for a car subwoofer system? For most buyers driving one or two subwoofers at a 1 ohm or 2 ohm load, the answer is yes, with two conditions. The vehicle's charging system has to be in good shape, and a 1-year warranty has to be acceptable.

Rockford Fosgate still carries the amp on its current product pages as part of the third-generation Prime R2 line, and no successor model is confirmed. Retail text sometimes garbles the ratings, so the figures below are anchored to the manufacturer's installation manual and product page, then checked against one independent bench source and two competing amplifiers.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

What the Rockford Fosgate Prime R2-1200X1 is, and where it sits

The R2-1200X1 is the largest of eight amplifiers in the Prime R2 manual. It is a mono Class D design with a stated response of 20 Hz to 250 Hz, so it suits subwoofers only. Rockford Fosgate rates it at 400 watts RMS into 4 ohms, 800 watts into 2 ohms and 1,200 watts into 1 ohm.

The model name matters when shopping. The R2-750X1 is a smaller, different amplifier, and some retail text carries wrong figures. One trade write-up cited below states 500 watts at 4 ohms, while the manufacturer's manual says 400 watts, which is the figure used here.

Rockford Fosgate R2-1200X1 design and build

The chassis is a cast aluminum heat sink with convection cooling and no fan, measuring 28.5 x 17.3 x 4.9 cm (11.3 x 6.8 x 1.9 in). Power and ground terminals are set-screw blocks that take up to 4 AWG wire, and the speaker and remote terminals take up to 8 AWG. Two positive and two negative speaker terminals are wired in parallel inside the amp, so a single speaker needs only one pair.

BestCarAudio.com, which opened the case, described five 2,200 microfarad input capacitors and six 3,500 microfarad, 100-volt rail capacitors. The manual asks for 1 inch (25.4 mm) of air around the heat sink and says engine compartment mounting voids the warranty.

R2-1200X1 features and setup controls

The feature set is generous for the class. Balanced RCA inputs and a 4-pin high-level input cover aftermarket and factory radios, RCA pass-through outputs can feed a second amp, and a wired remote level control ships in the box. Buyers who want the amp with that remote can start from this Rockford Fosgate R2-1200X1 mono amplifier listing and match the model name to the checks later in this review. Auto turn-on from DC offset works on the high-level input only.

Controls are gain, a low-pass filter from 50 Hz to 250 Hz, a variable infrasonic filter from 15 Hz to 40 Hz and a Punch EQ boost of 0 to +18 dB at 45 Hz. The manual fixes mono Prime amps in low-pass mode, suggests 50 Hz to 80 Hz for subwoofers and 25 Hz to 30 Hz for the infrasonic filter, and warns that heavy boost can over-excurse a woofer. Gain setup uses the C.L.E.A.N. LEDs, which light red at the onset of input or output distortion.

One documentation conflict exists. The product page and BestCarAudio.com give 12 dB per octave for the filters, while a manual features page says mono Prime amps use 24 dB per octave. The slope is treated as unsettled here.

R2-1200X1 power ratings and what the numbers mean

Rockford Fosgate states that its ratings follow the CTA-2006 standard and are measured at 14.4 volts. BestCarAudio.com's summary of the current revision says the standard calls for a 14.4-volt supply (plus 0, minus 5 percent), a 1 percent THD+N limit and a 50 Hz tone for subwoofer amps. The table adds voltage and current calculated from the ratings.

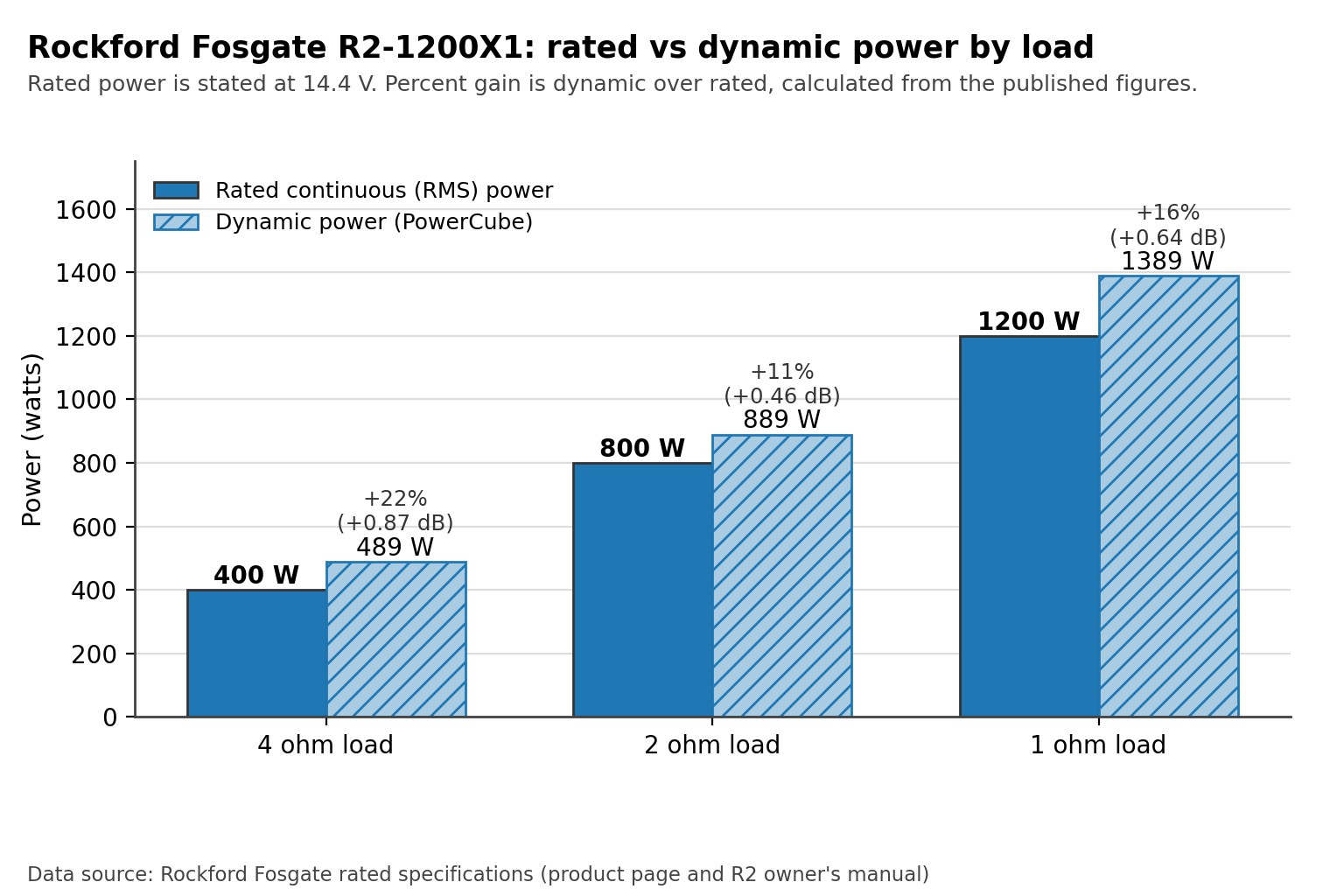

Load	Rated power (W)	Calculated volts RMS	Calculated amps RMS	Dynamic power (W)	Dynamic over rated
4 ohm	400	40.0	10.0	489	+22% (0.87 dB)
2 ohm	800	40.0	20.0	889	+11% (0.46 dB)
1 ohm	1,200	34.6	34.6	1,389	+16% (0.64 dB)

Two patterns stand out. The calculated output is 40 volts RMS at both 4 ohms and 2 ohms, so power doubles only because the load halves. At 1 ohm the voltage falls to about 34.6 volts while current rises to about 34.6 amps, where the power supply's current limit takes over. The dynamic ratings add under 1 dB at every load, so short peaks gain little over the continuous figure.

The manufacturer's maximum draw is 121 amps with a sine wave at 13.8 volts, about 1,670 watts of input power and 60.5% of the 200-amp fuse rating. Average draw on music is left blank in the specifications.

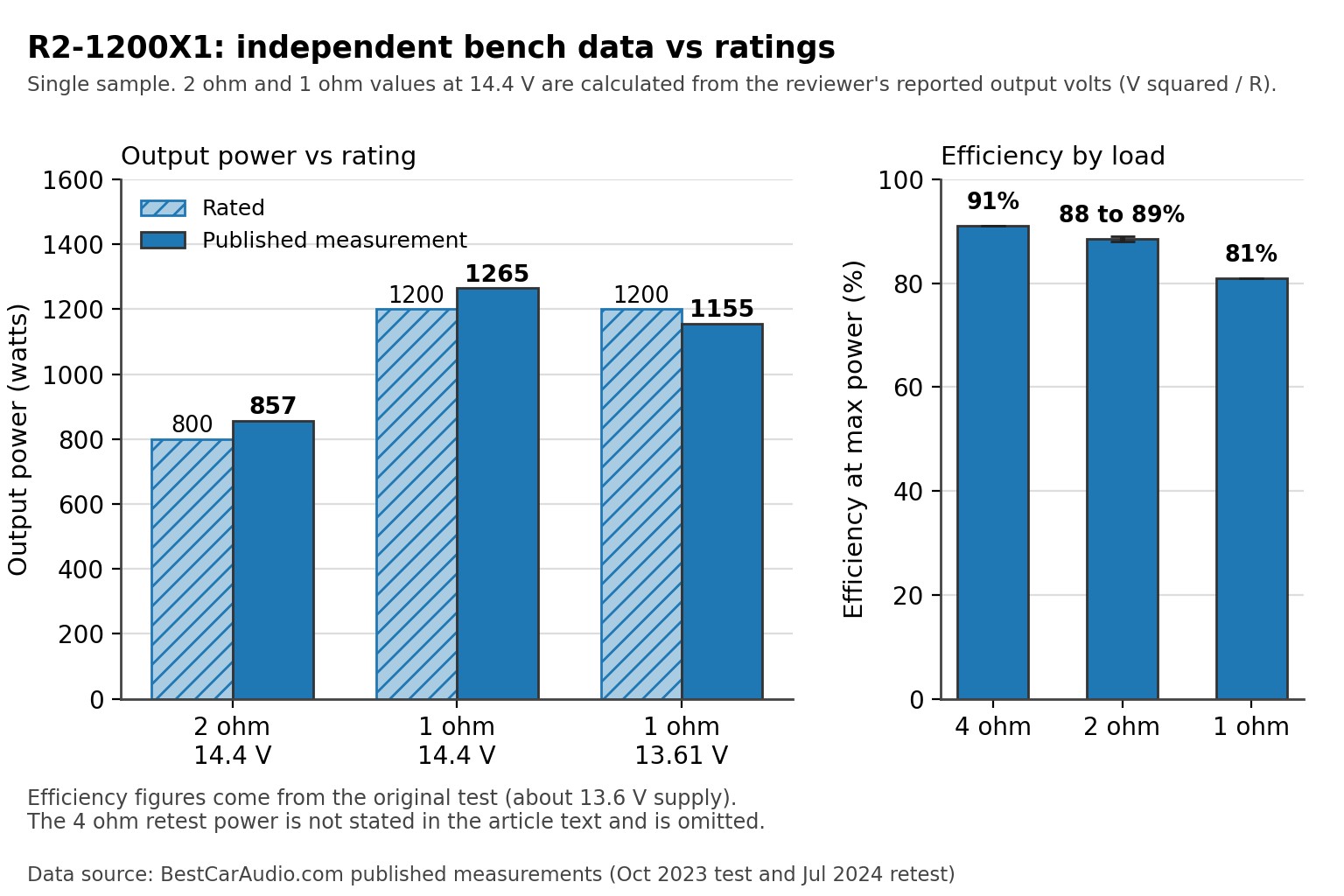

What independent bench data says about the R2-1200X1

The only independent measurements found come from BestCarAudio.com, and context matters. The site says Rockford Fosgate supplied the sample, labels the retest as a sponsored post and lists Rockford Fosgate among its supporting manufacturers. The data covers one sample.

In the original test the amp made 1,155.3 watts into 1 ohm from a 13.61-volt supply while drawing 105.4 amps, which works out to about 80.5% efficiency, in line with the reviewer's 81%. The reviewer also reported about 91% at 4 ohms and 88 to 89% at 2 ohms, and a 17-minute full-power run into 1 ohm with no protection event.

A retest used an adjustable 14.4-volt supply and reported 41.4 volts into 2 ohms and 35.57 volts into 1 ohm, which calculate to about 857 and 1,265 watts: 7.1% and 5.4% above the ratings (0.30 dB and 0.23 dB). The 4 ohm retest figure appears only in a chart image, so it is omitted.

The two 1-ohm results show sensitivity to supply voltage: a 0.79-volt drop cost about 8.7% of the power. As a rough model only, a 12.5-volt supply would give roughly 950 to 1,010 watts at 1 ohm, an estimate from two published points and not a measurement.

The reviewer also reported -3 dB points at 14 Hz and 270 Hz with the filters at their extremes and 0.055% THD+N into 4 ohms. The reported signal-to-noise figure of -69 dB sits below the manufacturer's CEA-2006 figure of more than 75 dB, though the reference levels may differ. The reviewer judged a Punch series amp tighter and more dynamic than this Prime model, so sound-quality buyers should read these results as a ceiling.

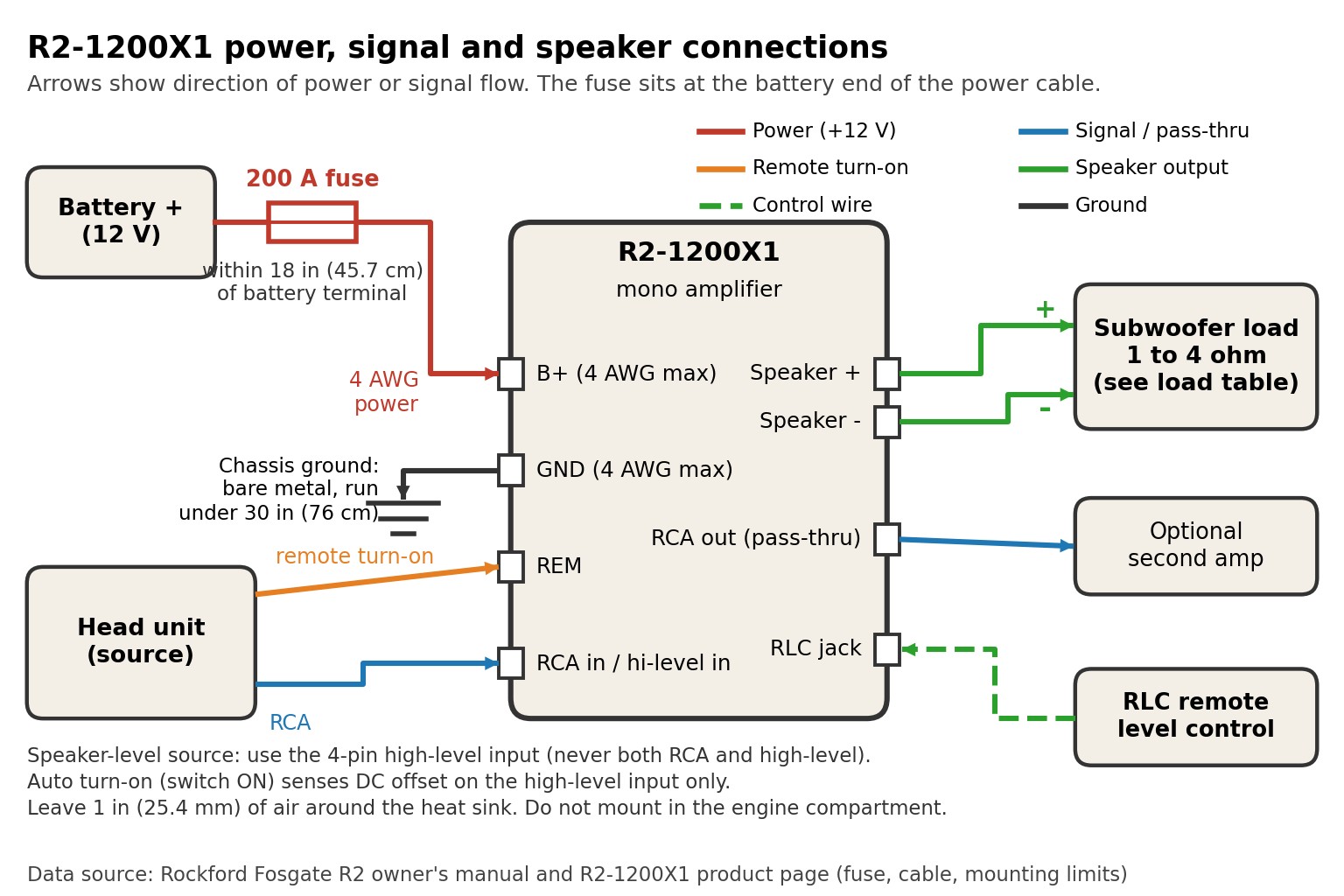

Installing the R2-1200X1: wiring, fuse and speaker load checklist

The manual sets the main installation rules.

1. Fuse the power cable with a 200 A fuse within 18 inches (45.7 cm) of the battery. The fuse is not included.
2. Use 4 AWG power and ground, with the ground under 30 inches (76 cm) on scraped bare metal, never a seat belt bolt.
3. Never load the amp below 1 ohm. The manual does not recommend it for this model.
4. Use RCA or high-level input, never both, and keep RCA cables away from power wiring.

Speaker wiring decides which rating applies. The table lists net loads calculated from common voice coil layouts. A series-wired 4 ohm dual voice coil subwoofer makes 8 ohms, which has no published rating.

Subwoofer layout	Net load	Rated amp power	Power per subwoofer
One 4 ohm single voice coil	4 ohm	400 W	400 W
One 4 ohm dual voice coil, coils in parallel	2 ohm	800 W	800 W
One 2 ohm dual voice coil, coils in parallel	1 ohm	1,200 W	1,200 W
Two 2 ohm dual voice coil, coils in series, subs in parallel	2 ohm	800 W	400 W each
Two 4 ohm dual voice coil, all coils in parallel	1 ohm	1,200 W	600 W each
Two 2 ohm single voice coil, in parallel	1 ohm	1,200 W	600 W each

The manual says stock systems in good condition should handle any Prime amp and suggests a heavy-duty battery and a storage capacitor. With output estimated near 1,030 to 1,070 watts at 13 volts, a weak charging system costs output before it costs reliability.

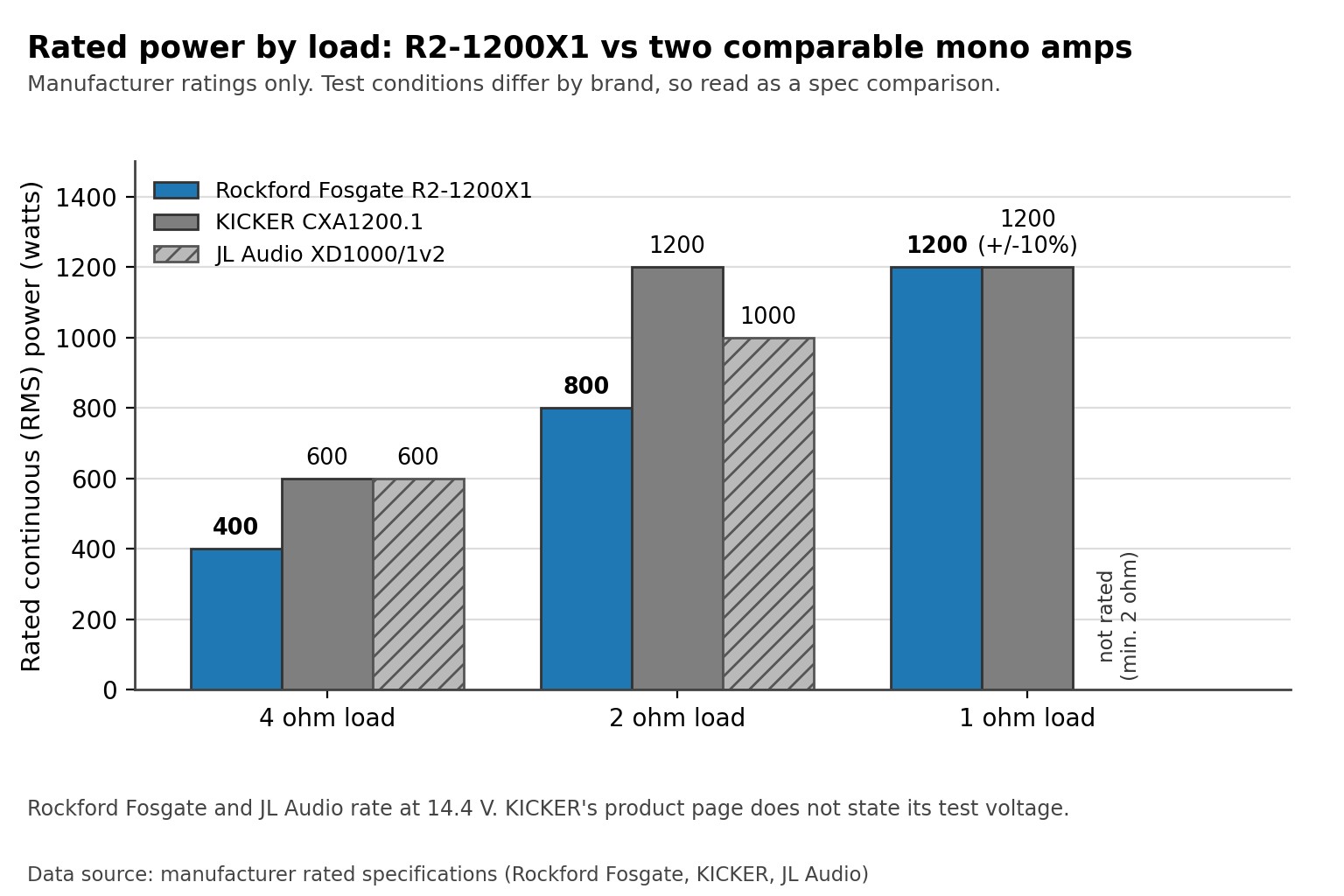

R2-1200X1 vs KICKER CXA1200.1 and JL Audio XD1000/1v2

The closest rivals are the KICKER CXA1200.1, a 1,200-watt Class D monoblock, and the JL Audio XD1000/1v2, a 1,000-watt monoblock for 2 ohm and higher loads. Test conditions differ by brand.

Specification	Rockford Fosgate R2-1200X1	KICKER CXA1200.1	JL Audio XD1000/1v2
Rated power at 4 ohm	400 W	600 W	600 W
Rated power at 2 ohm	800 W	1,200 W	1,000 W
Rated power at 1 ohm	1,200 W	1,200 W (+/-10%)	Not recommended
Signal-to-noise ratio	Over 75 dB (CEA-2006)	95 dB	Over 83 dB re rated power
Infrasonic or subsonic	15 Hz to 40 Hz variable	25 Hz, 24 dB/oct	30 Hz, 24 dB/oct, defeatable
Remote level control	Included	Sold separately	Optional
Recommended fuse	200 A	Not confirmed	80 A
Size (L x W x H)	28.5 x 17.3 x 4.9 cm	30.6 x 17 x 5.9 cm	37.4 x 18 x 5.2 cm
Warranty	1 year	2 years	2 years, 3 with authorized install using JL's power kit

On paper the R2-1200X1 gives up rated power at 4 ohms and 2 ohms: its 800-watt 2 ohm rating is 33% below the KICKER and 20% below the JL Audio. It matches the KICKER at 1 ohm, where the KICKER's +/-10% spans 1,080 to 1,320 watts. Its footprint is about 5% smaller than the KICKER and 27% smaller than the JL Audio, and its boost reaches +18 dB against +6 dB for the KICKER. The rivals win on warranty, and the JL Audio publishes a 12.5-volt rating of 800 watts at 2 ohms that helps buyers with weaker charging systems. Independent data exists only for the R2-1200X1.

Who should buy or skip the Rockford Fosgate R2-1200X1

The best fit is a daily-driver system with one or two subwoofers at 1 ohm, where the amp reaches 1,200 watts and the independent data was strongest. Factory-radio users benefit from the high-level input with auto turn-on. Shoppers comparing sellers can check the R2-1200X1 on Amazon next to the manufacturer's page.

• Buy it for a 1 ohm or 2 ohm subwoofer stage with a healthy battery, alternator and 4 AWG wiring.
• Skip it for a 4 ohm load, where the rating is only 400 watts, unless that is enough.
• Skip it for full-range speakers, since the response ends at 250 Hz and the low-pass cannot be defeated.
• Skip it if a warranty longer than 1 year is a priority, because both rivals cover 2 years.

The manual starts the warranty only from a purchase at an authorized dealer in the United States, and buyers elsewhere are covered by the local distributor.

Rockford Fosgate R2-1200X1 price and pre-purchase checks

The R2-1200X1 costs $449.99 (USD), or $0.37 per rated watt at 1 ohm, $0.56 at 2 ohms and $1.12 at 4 ohms. Fuse, power cable and speaker wire are not included, so a wiring budget belongs on top. Prices change often, so check the current listing.

• Confirm the exact model is R2-1200X1 and not the R2-750X1.
• Confirm the unit is new, since the manual gives factory refurbished products 90 days of coverage.
• Confirm the seller is an authorized dealer and keep the receipt.
• Confirm the box includes the remote, Allen key, mounting screws and Molex pigtails.
• Ask about the extra warranty year that the product page ties to a matching Rockford Fosgate installation kit.

Installers should price a 4 AWG kit and a 200 A fuse holder before comparing totals, then review the current R2-1200X1 offer on Amazon next to other sellers.

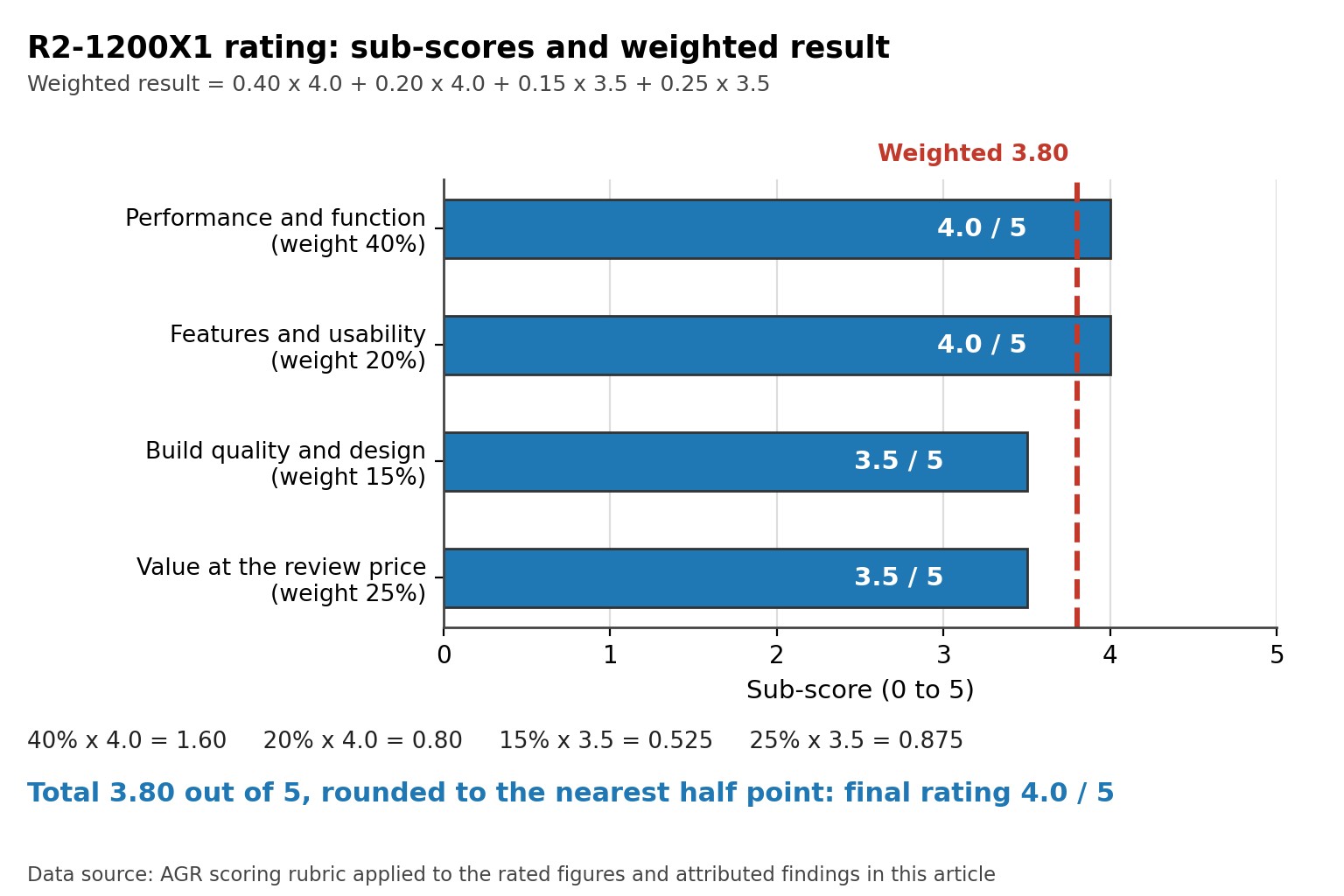

R2-1200X1 rating: how it scores

Each area is scored from 0 to 5 and weighted. Scores are conservative because the independent evidence is one sample from one sponsored source.

Area	Weight	Score	Weighted points
Performance and sound/function	40%	4.0	1.600
Features and usability	20%	4.0	0.800
Build quality and design	15%	3.5	0.525
Value at the review price	25%	3.5	0.875
Weighted total	100%	3.80	Rounds to 4.0

Performance earns 4.0 because bench data shows the amp meeting its ratings with 81% to 91% efficiency, though the evidence is thin and the measured signal-to-noise figure is modest. Features earn 4.0 for the remote, high-level input, pass-through and C.L.E.A.N. LEDs, limited by a fixed low-pass and a boost that can over-excurse a woofer. Build earns 3.5 for the cast heat sink and heavy capacitors, held back by a 1-year warranty. Value earns 3.5 because $449.99 is fair for 1,200 rated watts at 1 ohm, but wiring and warranty length add cost.

The weighted total of 3.80 rounds to the nearest half point, giving a final rating of 4.0 out of 5. Our research score is based on the rated figures and documented details above.

Sources and further reading

• Rockford Fosgate R2-1200X1 product page: ratings, dynamic power, price, warranty extension.
• Rockford Fosgate Prime R2 installation and operation manual: wiring limits, dimensions, signal-to-noise, warranty terms.
• BestCarAudio.com Test Drive Review of the R2-1200X1: bench measurements.
• BestCarAudio.com retest at 14.4 volts: retest voltages, sponsored label.
• BestCarAudio.com explainer on the CTA-2006-D standard: standard requirements.
• KICKER CXA1200.1 product page: competitor specifications.
• JL Audio XD1000/1v2 owner's manual (retailer-hosted PDF): competitor specifications and warranty.
• Abt product page: price from an authorized dealer.
