Rockford Fosgate T1000X5ad Review: Compact 1,000W 5-Channel Amp

The Rockford Fosgate Power T1000X5ad is worth considering when a system needs four full-range speaker channels and a dedicated subwoofer channel without stacking separate amplifiers. This Rockford Fosgate T1000X5ad review examines the published combination of 100 watts RMS per main channel and 400 watts for the subwoofer at 4 ohms, rising to 600 watts for the subwoofer at 2 ohms while the four main channels remain rated at 100 watts each. Rockford Fosgate continues to list the model in its amplifier catalog and provides a product manual; research did not confirm a direct successor.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

Rockford Fosgate Power T1000X5ad design and compact footprint

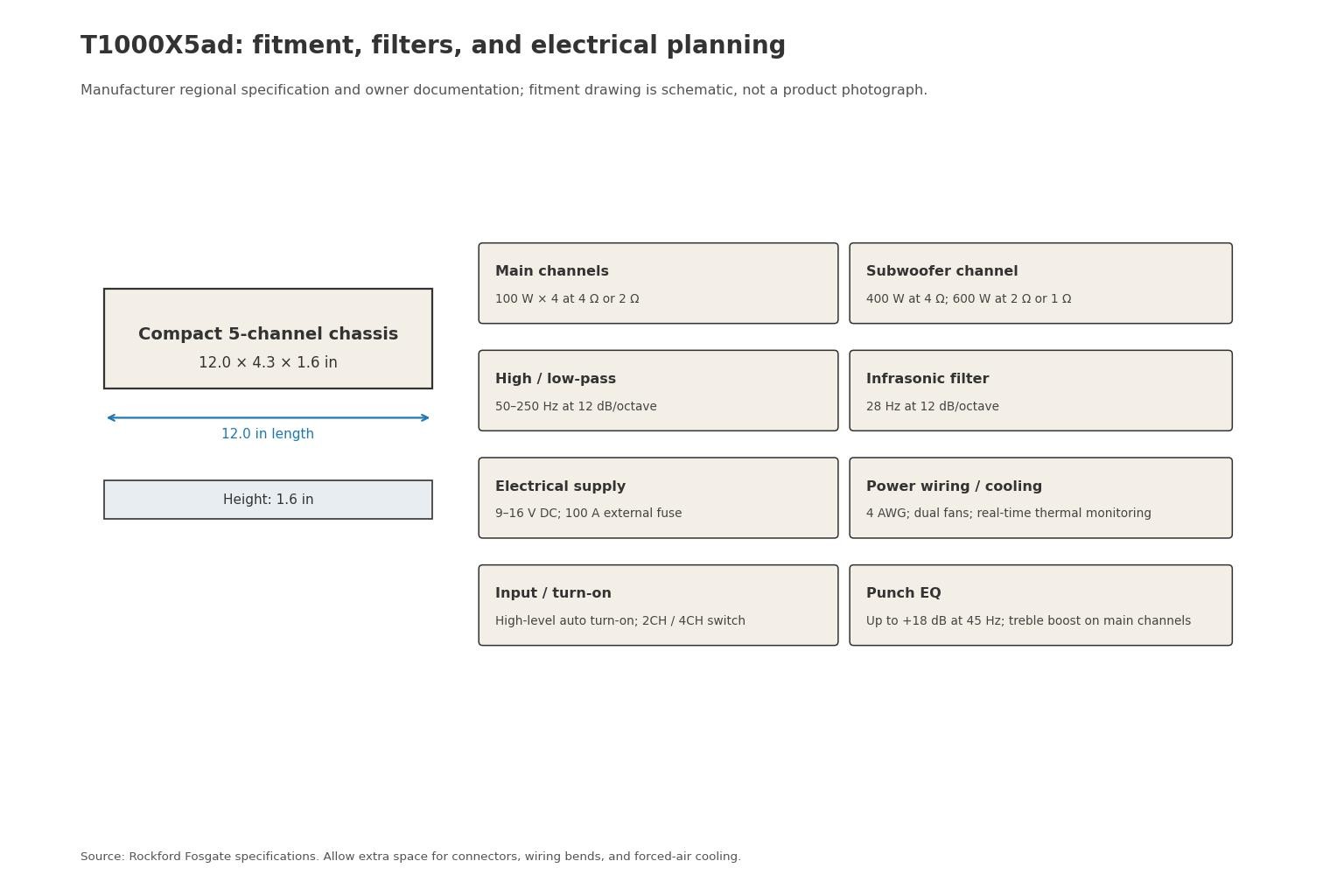

The amplifier measures 12.0 × 4.3 × 1.6 inches, according to Rockford Fosgate's published specifications. That narrow, low-profile body is central to the product's appeal. In a car with limited mounting space, one five-channel chassis can simplify the physical layout compared with separate full-range and subwoofer amplifiers. The dimensions refer to the amplifier body, not the space needed for its power terminal, speaker harnesses, signal plugs, cable bends, or airflow. Plan around the installed connectors and service access rather than only the nominal chassis measurements.

The main speaker channels use Rockford Fosgate's Class-AD design, while the subwoofer channel uses Class-BD topology. The manufacturer's Constant Power feature is intended to keep the four main channels at the same rated output into 4-ohm and 2-ohm loads. It does not mean every channel supports every impedance: the published subwoofer ratings are 400 watts at 4 ohms and 600 watts at both 2 ohms and 1 ohm, while the four main channels are not rated for 1-ohm operation.

Rockford Fosgate documents dual-fan cooling, extruded aluminum heat sinks, and real-time thermal monitoring with rollback protection. Those details matter because a compact amplifier that produces substantial power still has to move heat out of its case. Mount it where the fans can exchange air and where cables cannot obstruct the cooling path. A panel or cavity that fits the case but traps hot air can undermine the design's cooling strategy.

Rockford Fosgate Power T1000X5ad inputs, controls, and tuning

The published input sensitivity is 150 mV to 12 V, and the amplifier accepts high-level or low-level inputs through its harness connections. High-level auto turn-on can simplify integration with a factory head unit, and the manufacturer documents a remote-out feature when high-level inputs are used. That may remove the need for a conventional remote lead in some installations, but the exact source and vehicle behavior still need to be checked before wiring.

An input switch provides 2-channel or 4-channel input configuration. In 2-channel mode, the sub signal is derived from the front-left input according to the manufacturer documentation. That is a useful routing option, but it should not be confused with independent subwoofer input selection in every configuration. Before choosing the input mode, map which signals are available from the source and how front, rear, and subwoofer content are encoded by the head unit.

Rockford Fosgate's C.L.E.A.N. system uses input and output clipping indicators to help set gain. Gain should match the head unit's signal voltage to the amplifier input, not serve as a loudness control. A clipping indicator gives the installer a repeatable reference point, but correct setup still depends on the source volume, test signal, equalizer settings, and the intended speaker load. Avoid using aggressive bass boost to make up for an incorrectly configured crossover or subwoofer enclosure.

The front and rear channels have high-pass and low-pass crossover modes adjustable from 50 Hz to 250 Hz at 12 dB per octave. The subwoofer channel has its own low-pass range over the same nominal span and a fixed 28 Hz infrasonic filter with a 12 dB-per-octave slope. Bass Punch EQ provides up to +18 dB at 45 Hz; the main-channel controls also provide treble boost up to +14 dB at 12.5 kHz when configured in high-pass mode. These are sizeable changes, so start with boosts flat and apply correction sparingly. A +18 dB boost is not a small tweak: it asks for substantially more signal headroom near the boost frequency and can increase clipping risk.

The optional PLC2 Punch Level Control can adjust the subwoofer level from the driver's seat. It is an optional accessory, so check the exact package before assuming a remote knob is included. Buyers who want extensive app-based DSP, automatic equalization, or time alignment should compare a separate signal processor or an amplifier with those facilities built in.

For product details and purchase options, the T1000X5ad product listing at Crutchfield is a non-Amazon reference. The supplied Amazon link is also model-specific for shoppers who prefer to review that listing: see the Rockford Fosgate Power T1000X5ad on Amazon.

Rockford Fosgate Power T1000X5ad rated power and performance

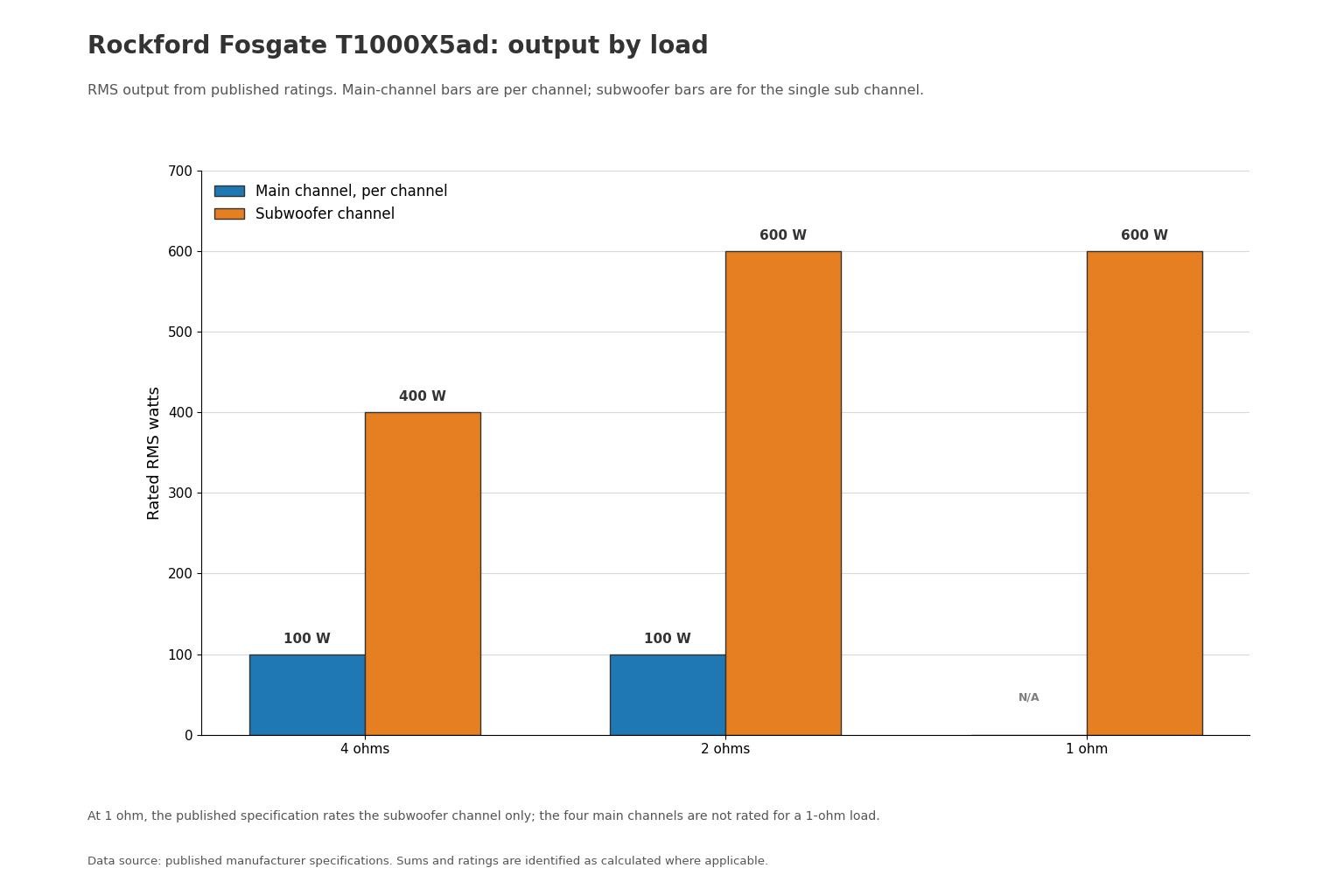

Rockford Fosgate rates the main four channels at 100 watts RMS per channel into either 4 ohms or 2 ohms. The subwoofer output is rated at 400 watts RMS into 4 ohms and 600 watts into 2 ohms or 1 ohm. The amplifier is therefore a flexible five-channel unit, but the output ratings need to be read by channel group rather than compressed into one universal 1,000-watt figure. At 4 ohms, the sum of the four main-channel ratings and sub channel is 800 watts; at 2 ohms, their published ratings sum to 1,000 watts. At 1 ohm, the published rating applies to the subwoofer channel only.

The comparison figure adds the four main-channel ratings to the subwoofer rating at 2 ohms: 100 W × 4 + 600 W = 1,000 W for the T1000X5ad. That is arithmetic using published ratings, not a new measurement by Audio Gear Reviews. Manufacturers may state ratings at different supply voltages, frequencies, and distortion limits, so the chart helps compare rated system capacity but is not a controlled test of the amplifiers against one another.

An independent PASMAG review of the T1000X5ad reports bench tests at 100 Hz and 1.0% THD+N and includes graphs for power, frequency response, crossover behavior, and EQ. The reviewer reported measured output above the published ratings in some tests, but those results apply to the specific test conditions described in that review. They should not be read as a promise of 30% extra power at every load, frequency, or vehicle supply voltage. The published rating remains the safer basis for choosing speakers and planning an installation.

Published total harmonic distortion plus noise is below 1% at rated power for the main and subwoofer outputs. Rockford Fosgate lists more than 85% average efficiency. These figures offer some insight into the design, but they do not establish how an individual vehicle will sound. Speaker sensitivity, cabin acoustics, the head unit's signal processing, crossover choices, subwoofer enclosure, and setup quality have a large effect on the final result.

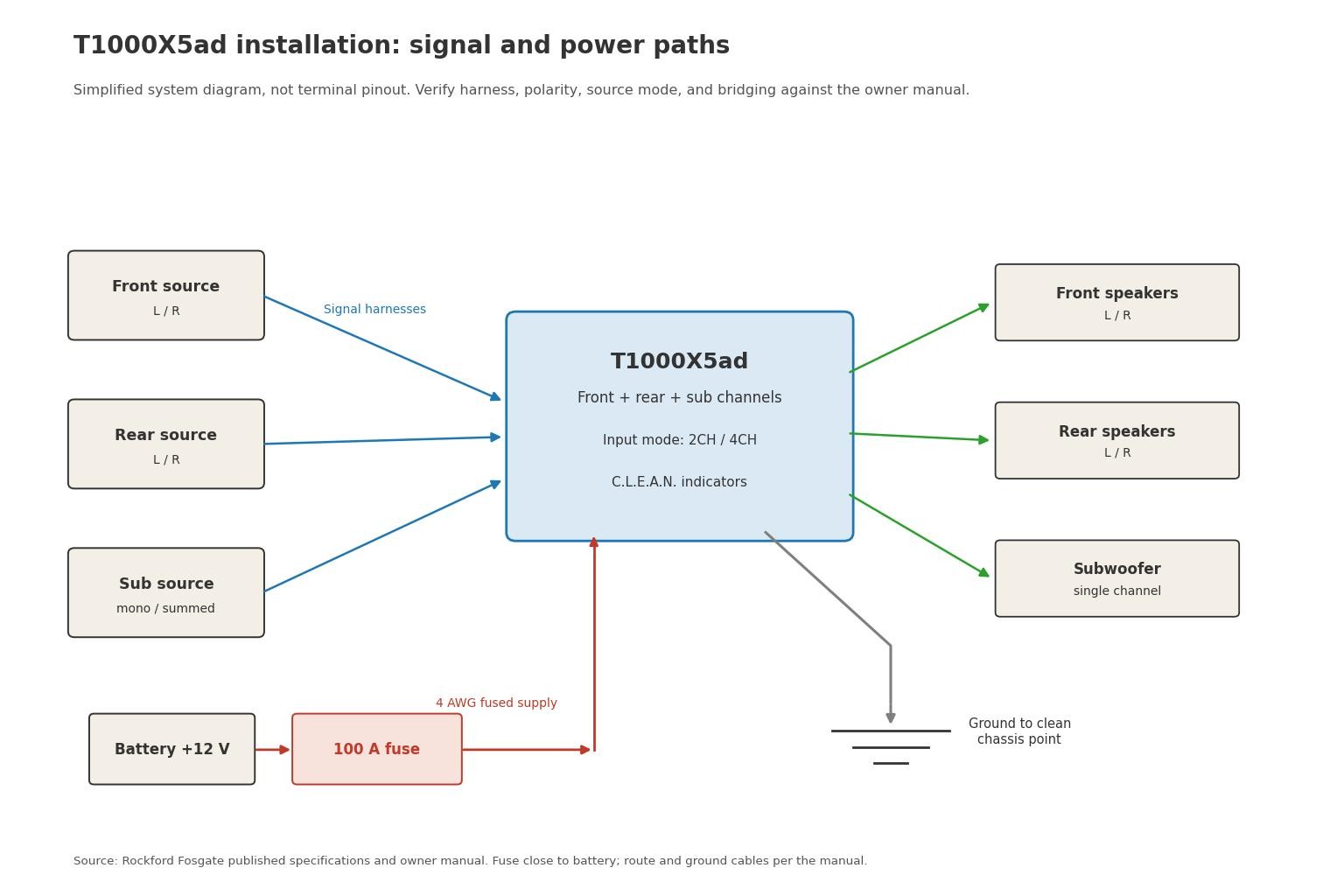

Installation and electrical requirements for the Rockford Fosgate Power T1000X5ad

The manufacturer's documentation specifies 4 AWG power wiring and a 100 A external fuse. It lists maximum sine-wave current draw at 13.8 volts as 108 A. The source spec page does not provide a filled-in average music current figure, so this review does not invent one. The fuse is not supplied as an internal amplifier fuse; choose an appropriate holder and install the main fuse close to the battery as directed by the owner's manual. Cable length, routing, insulation, grounding, and the vehicle's charging system all matter.

Before installing, disconnect the negative battery terminal, mount the amplifier securely, protect the power lead where it passes through metal, and use a clean chassis-ground point. Do not route the power cable in a way that can be pinched by seat tracks, trim panels, or cargo. Leave enough room for the input and speaker harnesses to connect without sharp bends, and preserve air movement around both cooling fans. If the system includes multiple amplifiers, size the main feed, distribution block, ground paths, and upstream protection for the combined loads.

Front and rear speaker outputs use four-pin harnesses, while the subwoofer output uses a detachable compression terminal. That difference is important when planning the installation: do not assume the full-range speaker wires and subwoofer cable terminate in the same connector type. Confirm that the correct harnesses are included in the package and check polarity at every speaker. Use the manual's diagram for the exact terminal arrangement instead of relying on wire colors alone.

Check the final impedance of every speaker group before powering the system. The main channels support 2-ohm and 4-ohm loads, not 1 ohm. The subwoofer channel is rated for 1-ohm operation, but that does not make every voice-coil wiring combination safe: calculate the final load from the subwoofer's voice coils and follow the rated limits. Recheck gain and crossover settings after the source, speaker wiring, or speaker arrangement changes.

Rockford Fosgate Power T1000X5ad compared with five-channel alternatives

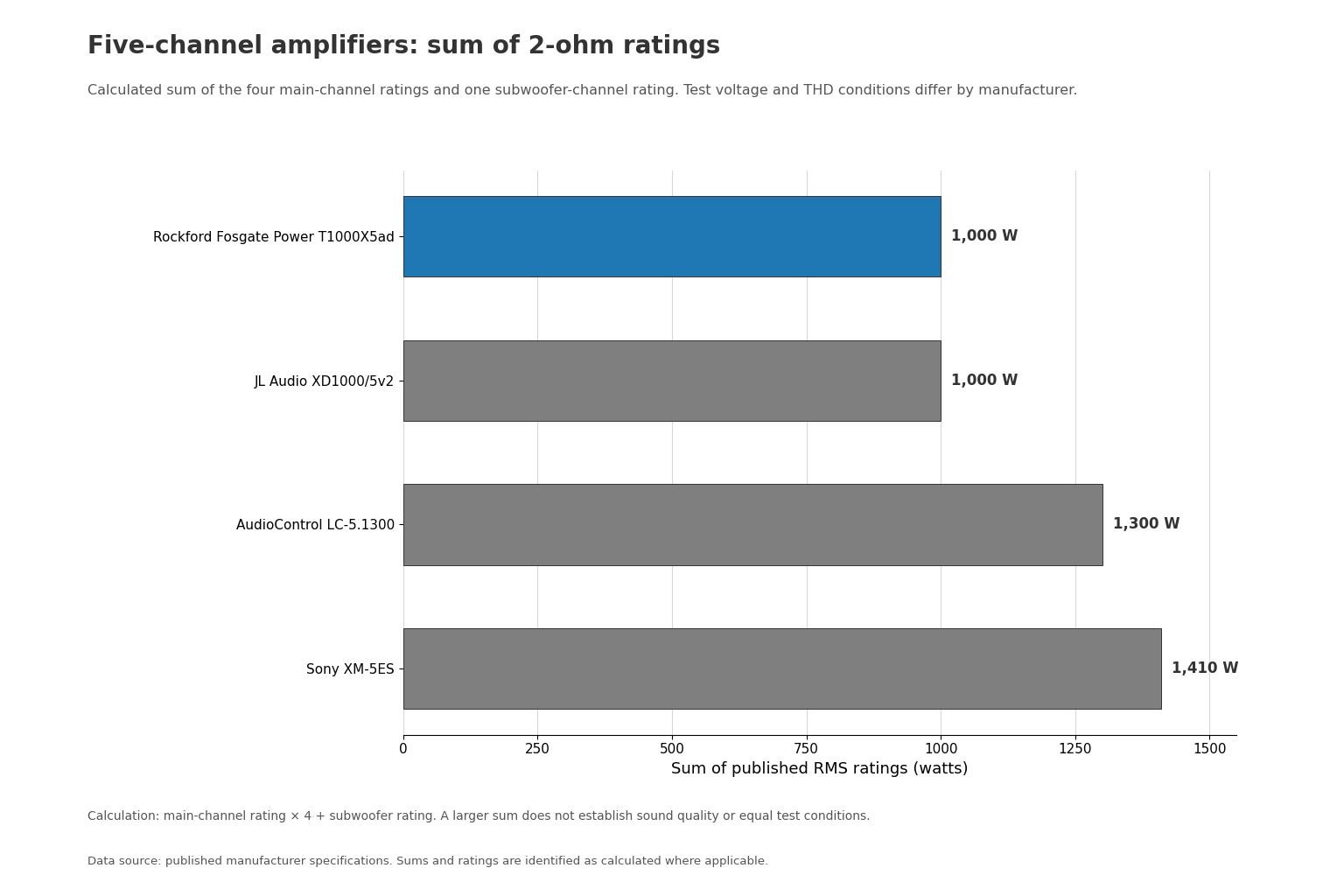

The JL Audio XD1000/5v2, AudioControl LC-5.1300, and Sony XM-5ES are relevant alternatives because each combines full-range speaker channels with a dedicated subwoofer output. The first is closest to the T1000X5ad's aggregate published 2-ohm rating. The other two publish higher sums of channel ratings at 2 ohms, though the manufacturers' rated test conditions are not identical.

Model	Published 2-ohm RMS ratings	Calculated sum	Buyer distinction
Rockford Fosgate Power T1000X5ad	100 W × 4 + 600 W × 1	1,000 W	Compact body, Constant Power main channels, C.L.E.A.N. indicators, fan cooling
JL Audio XD1000/5v2	100 W × 4 + 600 W × 1	1,000 W	Variable filters, multiple system configurations, optional remote level control
AudioControl LC-5.1300	200 W × 4 + 500 W × 1	1,300 W	Flexible OEM integration, eight speaker-level inputs, independent 3-way crossover alignment
Sony XM-5ES	165 W × 4 + 750 W × 1	1,410 W	Higher published 2-ohm output and broad crossover adjustment

JL Audio lists the XD1000/5v2 at $1,049.99 USD through Crutchfield, while Sony lists the XM-5ES at $999.99 USD on its direct product page. The official AudioControl archive provides useful engineering specifications for the LC-5.1300, but this research did not establish a current non-Amazon price for that model, so no price is quoted for it here. These alternatives illustrate the trade-off: the Rockford unit is compact and powerful for its size, but it is not the highest-output option among these models.

For buyers who prioritize installation footprint and a single unit for front, rear, and subwoofer duties, the T1000X5ad remains a coherent package on paper. Buyers who need more main-channel output at 2 ohms or more extensive OEM integration may prefer the alternatives. Check whether a proposed replacement supports the intended subwoofer impedance, bridged modes, and the exact input strategy before treating it as a drop-in substitute.

Price and pre-purchase checks for the Rockford Fosgate Power T1000X5ad

The T1000X5ad is listed at $949.99 USD by Rockford Fosgate's amplifier catalog and by Crutchfield. The value question is not only total wattage; buyers should weigh the small chassis, five-channel layout, high-level input support, clipping indicators, thermal controls, and filter flexibility against the price of alternatives or two separate amplifiers. Prices change often, so check the current listing.

Before paying, confirm the exact T1000X5ad model, the parts-and-labor warranty for the region, the input and speaker harnesses in the box, and whether the optional PLC2 remote is needed. Confirm that the mounting location can fit the 12 × 4.3 × 1.6-inch case plus connectors and airflow. Verify the wiring kit includes suitable 4 AWG power and ground cable, a 100 A fuse holder, and correctly sized speaker wiring. If buying from an independent seller, check warranty eligibility and return terms separately.

The model remains in Rockford Fosgate's published product catalog and the 2016 compact Power amplifier manual index covers it. Research did not confirm a direct successor to the T1000X5ad. The $949.99 price places it in a premium bracket, so value depends on whether its size and integrated layout solve a real constraint in the intended system.

For the exact product page, the Rockford Fosgate amplifier catalog is the official reference. The supplied product link is also here for readers who prefer to check the model-specific Amazon listing: see the Rockford Fosgate T1000X5ad on Amazon.

Rating explanation for the Rockford Fosgate Power T1000X5ad

The performance score reflects substantial published output across four main channels and a dedicated subwoofer channel, supported by a historical independent test report, while recognizing that rated performance depends on the specified voltage, load, and test conditions. Features score well because the design includes multiple input configurations, high-level signal sensing, C.L.E.A.N. clipping indicators, separate crossovers, EQ, and a subsonic filter. Build and design score well for the compact aluminum chassis, fan cooling, and thermal monitoring, but the buyer still needs to plan for airflow and a meaningful power installation.

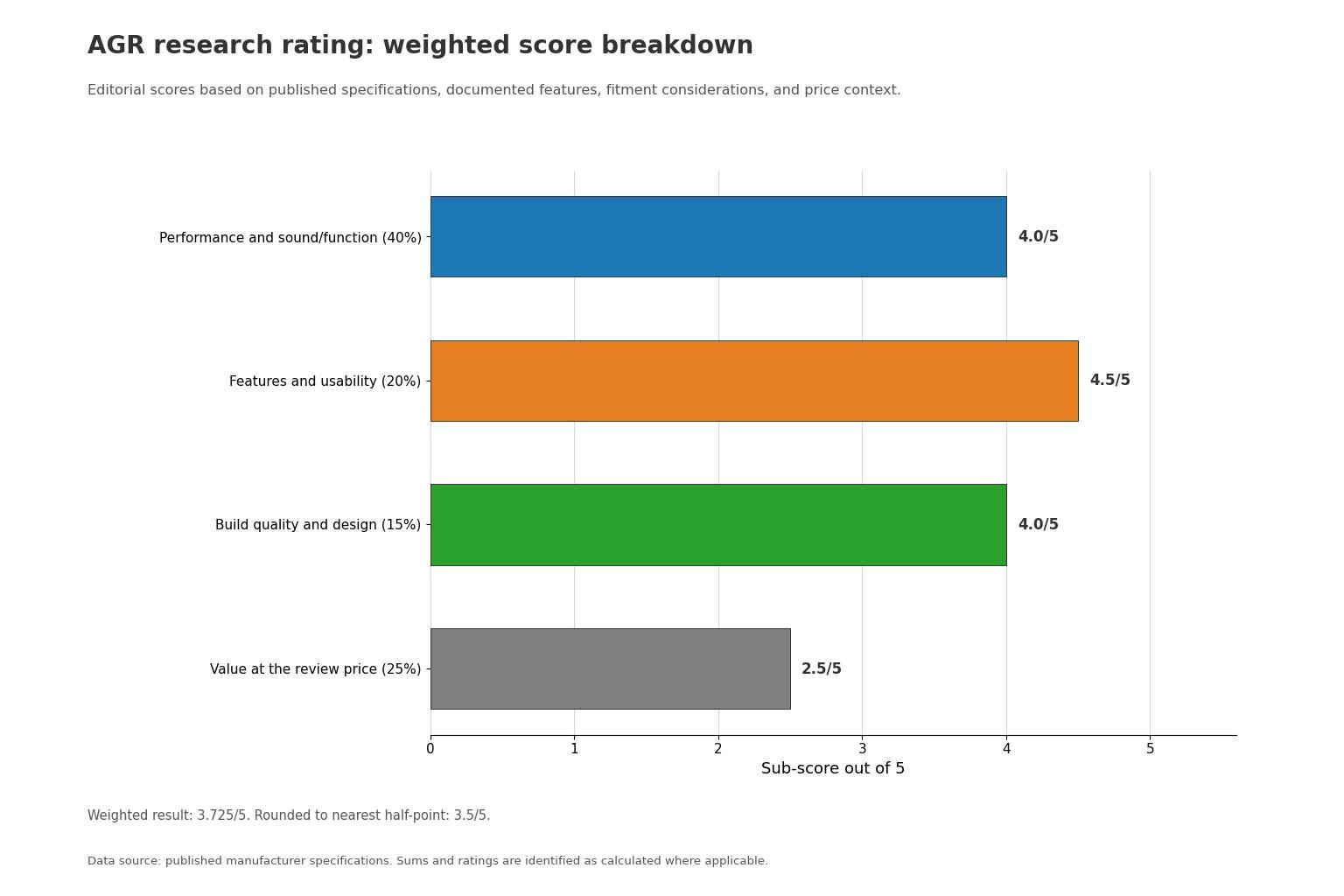

Scoring area	Score	Weight	Weighted points
Performance and sound/function	4.0/5	40%	1.600
Features and usability	4.5/5	20%	0.900
Build quality and design	4.0/5	15%	0.600
Value at the review price	2.5/5	25%	0.625
Weighted result	3.725/5	100%	3.725

Our research score is based on the rated figures and documented details above. The weighted result is 3.725 out of 5. On a half-point scale, 3.725 is closer to 3.5 than 4.0, so the final rating is 3.5/5. Value is the weakest category because the listed price is high relative to several alternatives that publish similar or greater aggregate channel output. The T1000X5ad makes the most sense when its compact five-channel layout and setup features are specifically useful.

Sources and further reading

The following references support the product specifications, current non-Amazon price, independent testing context, and comparison figures.

• Product ratings, inputs, crossover, dimensions, wiring, fuse, and cooling details: Rockford Fosgate regional specification page.
• Owner documentation and supported model list: Rockford Fosgate 2016 Power compact amplifier manual index.
• Non-Amazon retail price and model details: Crutchfield T1000X5ad listing.
• Historical bench plots and test conditions: PASMAG independent amplifier review.
• Five-channel reference ratings and price: JL Audio XD1000/5v2 Crutchfield page.
• Five-channel archive specifications: AudioControl LC-5.1300 official archive.
• Current five-channel specifications and direct pricing: Sony XM-5ES product page.
• Rated power, THD, filters, and dimensions for the competing model: Sony XM-5ES official specifications.
