Rockford Fosgate T400X2ad Review: Compact 400W Class-AD Power

The Rockford Fosgate Power T400X2ad is worth considering when a high-output two-channel amplifier has to fit into a tight space. In this Rockford Fosgate Power T400X2ad review, its published ratings are the main attraction: 200 watts RMS per channel at either 4 ohms or 2 ohms, plus 400 watts RMS when bridged into a 4-ohm load. Crutchfield's catalog page and a Rockford Fosgate regional product page retain documentation for the model, although the supporting manuals date to the mid-2010s. Research did not confirm a direct successor.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

Rockford Fosgate Power T400X2ad design and fit

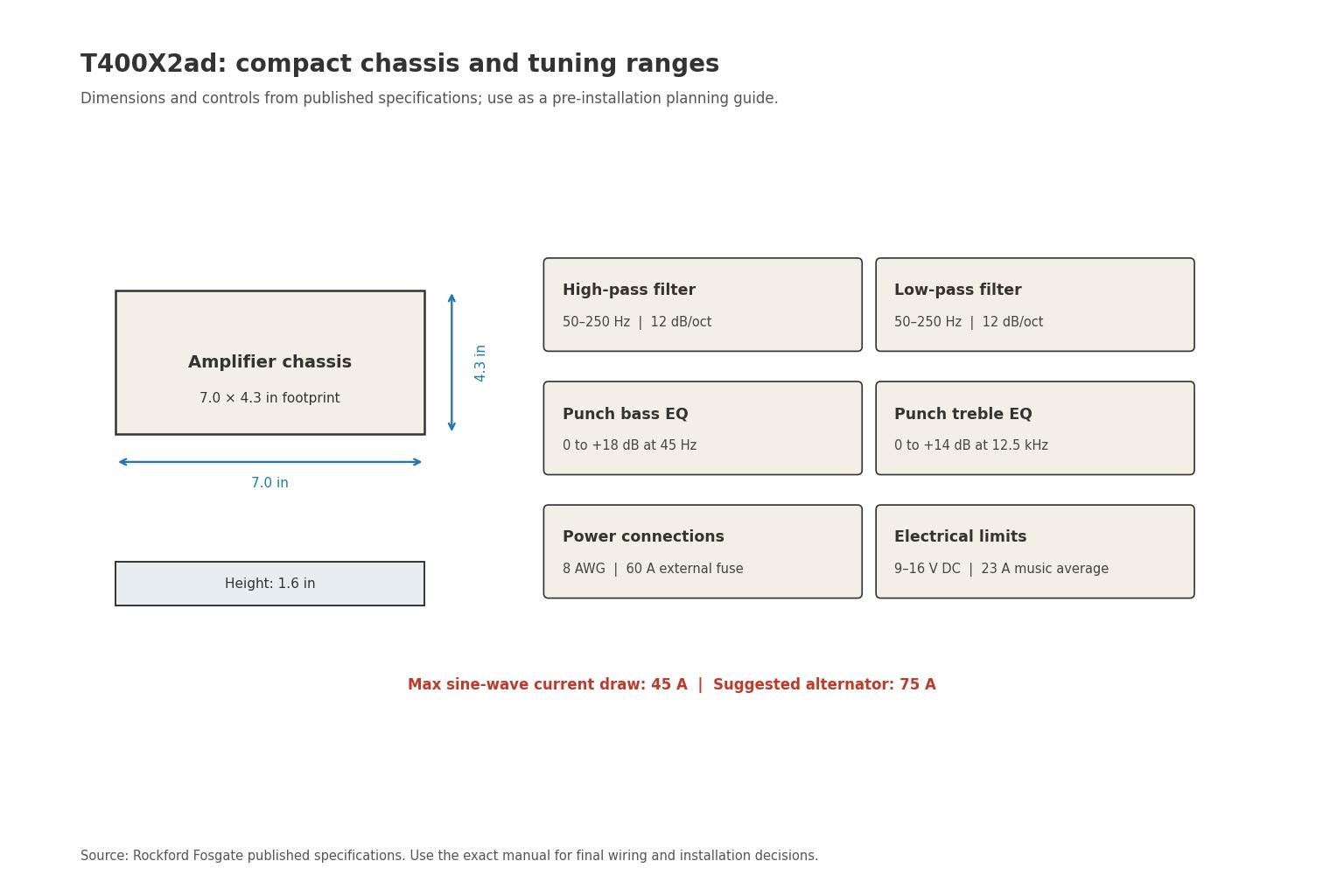

The T400X2ad measures about 7 inches long, 4.3 inches wide, and 1.6 inches high. That footprint is the reason to shortlist it. The output rating is substantial for an amplifier that can fit behind interior trim or in a cramped vehicle installation, but the dimensions describe the amplifier body, not the extra space required for cables, ventilation, fuse access, or mounting hardware. Check the actual installation area with the wiring bends and service access included.

Rockford Fosgate's product documentation identifies a Class-AD design with Constant Power technology. The amp is rated to deliver the same 200 watts per channel at 4 ohms and 2 ohms, within the manufacturer's rated operating conditions. The chassis uses active fan cooling according to the manufacturer-distributor specifications, so an installer should not assume the unit can be sealed into a small airless cavity simply because it is compact.

The documented body size is approximately 17.8 × 10.8 × 4.1 cm. The dimensional order differs between vendor pages, so installers should match the individual height, width, and depth values rather than compare a bare string of three numbers. The 2014 manual and product listings agree on the very compact format.

Rockford Fosgate Power T400X2ad features and controls

The input stage accepts low-level and speaker-level signals, and the high-level input path supports signal-sensing auto turn-on. That makes the amp easier to integrate with either an aftermarket head unit or a compatible factory audio source without automatically requiring a separate line-output converter. The exact input harness and connection arrangement should be checked before ordering extra adapters.

Rockford Fosgate includes its C.L.E.A.N. setup indicators to help identify clipping at the input and output. A 2014 editorial listening report from Mycar-Life also described using the clip indicators during gain setup, with the signal source and gain adjusted until the indicator warned of clipping. The practical lesson is simple: gain is for matching signal voltage, not for making an amplifier deliver more than its clean rated output. Set the source and gain using the documented setup procedure and compatible test material.

The top-mounted filters support high-pass, low-pass, and all-pass operation. High-pass and low-pass frequencies are adjustable from 50 Hz to 250 Hz at 12 dB per octave. Bass Punch EQ allows up to +18 dB at 45 Hz, while treble Punch EQ allows up to +14 dB at 12.5 kHz. Those are large boosts; applying either one aggressively can use amplifier headroom and increase distortion or speaker stress. Start with EQ flat, confirm crossover settings, then add modest correction only if the speaker system and listening goals justify it.

The amp is also compatible with the optional PLC2 Punch Level Control. It is an extra rather than a reason to assume a remote knob is included in every package. Verify the exact retail bundle and whether the remote is needed for the intended setup.

For shoppers who want a compact amplifier with extensive onboard DSP, automatic equalization, or multi-channel time alignment, the T400X2ad is less specialized. Its feature set is centered on conventional gain setup, crossovers, tone shaping, and flexible inputs rather than a software-based tuning platform. A separate DSP may be the better fit for a system that needs precise equalization or time alignment.

For product details and purchase options, see the Rockford Fosgate Power T400X2ad listing at Crutchfield.

Rockford Fosgate Power T400X2ad rated output and performance

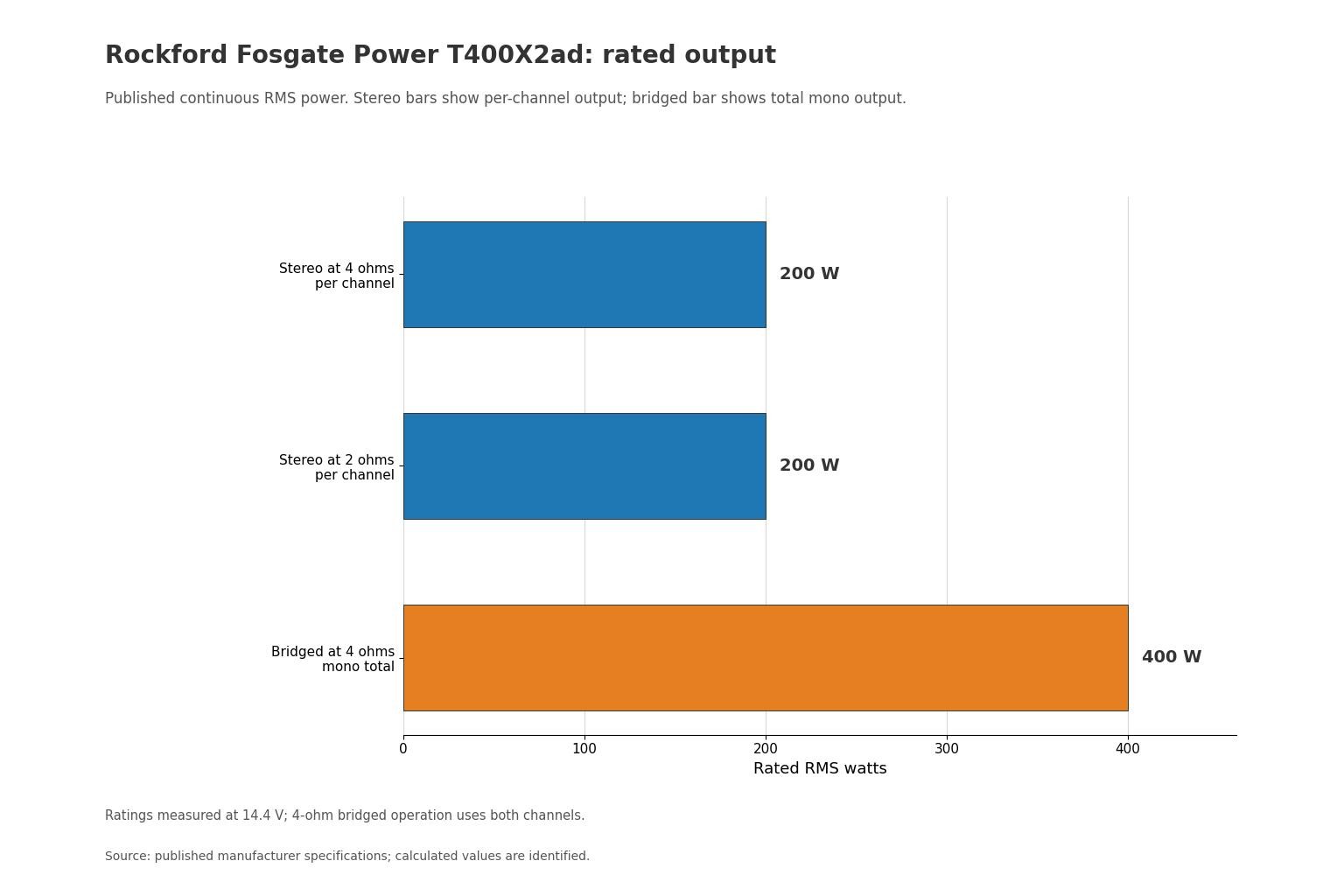

Rockford Fosgate's published figures are 200 watts RMS × 2 at 4 ohms, 200 watts RMS × 2 at 2 ohms, and 400 watts RMS × 1 bridged at 4 ohms. The manufacturer's 2014 owner documentation identifies the continuous ratings as measured at 14.4 V and indicates CEA-2006 compliance. This is a power rating, not a promise of identical output in every vehicle: supply voltage, installation quality, load impedance, thermal conditions, and the source signal matter.

The simple arithmetic is useful. In stereo mode, 200 W per channel multiplied by two channels gives 400 W aggregate rated output. Bridged mode is also rated at 400 W, but it drives one 4-ohm load using both channels. That does not mean the bridged connection is interchangeable with two independent speaker channels. For bridging, follow the exact manual's terminal instructions and use a 4-ohm load; the regular stereo ratings support 2-ohm loads per channel.

The published frequency response is 20 Hz to 20 kHz within ±1 dB, and total harmonic distortion plus noise is listed below 1% at rated power into both 4-ohm and 2-ohm loads. The high- and low-pass ranges stop at 50 Hz on the low end, so this is not a subsonic-filter solution for deep subwoofer tuning. It is better understood as a full-range two-channel amp whose crossover and EQ controls can also suit appropriate mid-bass or subwoofer arrangements when the load and filter settings are correct. Our research found no independent lab measurements for this model.

One independent editorial source, Mycar-Life, published a listening comparison in 2014 and considered the T400X2ad alongside Rockford Fosgate's earlier T600-2 and four-channel T400X4ad. That source is useful historical context, not a current controlled laboratory measurement. It does not replace checking the rated power conditions, channel mode, and load requirements for a planned installation.

Installation and compatibility checks for the Rockford Fosgate Power T400X2ad

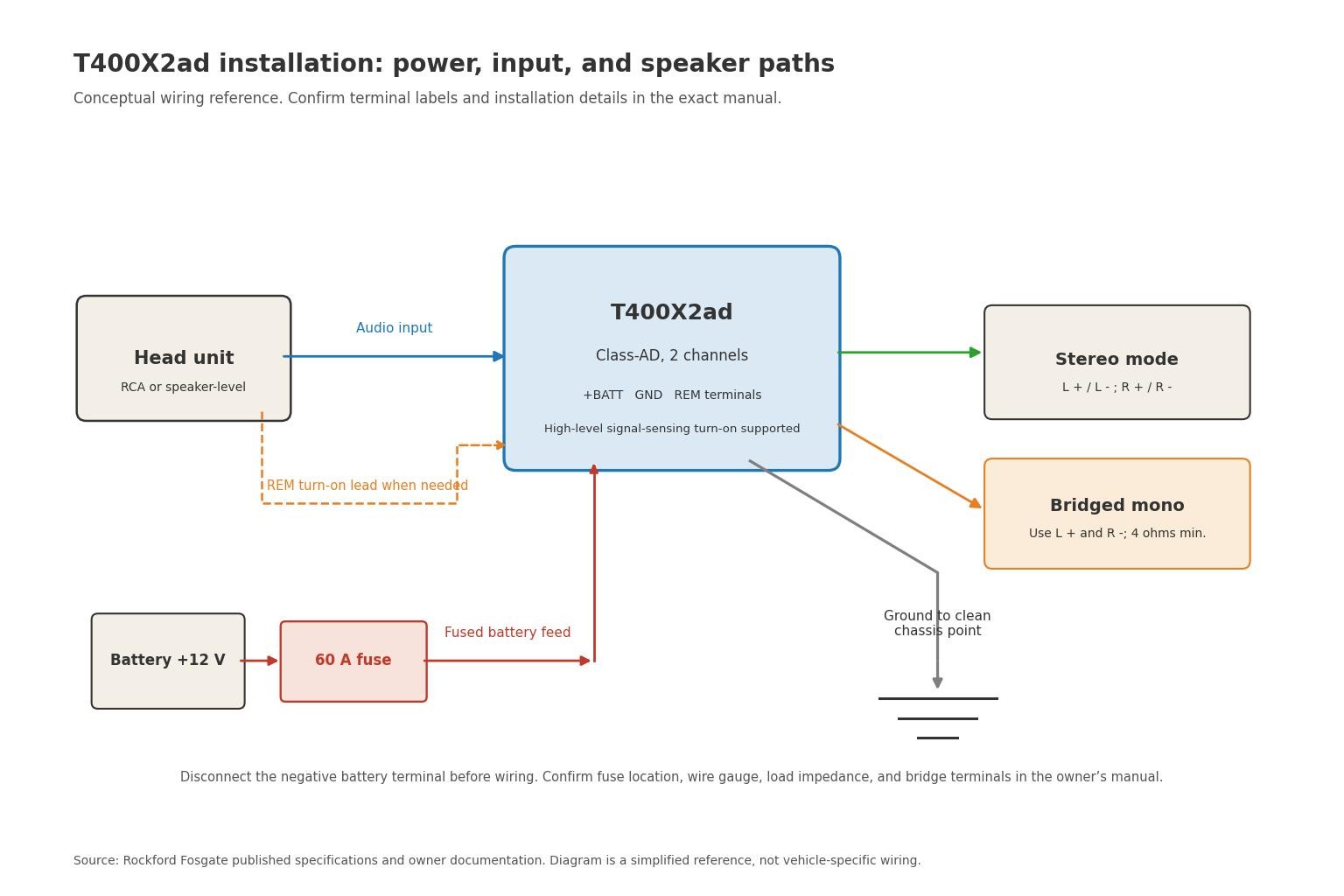

The published installation figures specify 8 AWG power and ground wiring, a 60 A external battery fuse, 9-16 V DC operating voltage, average music current draw of 23 A at 13.8 V, and a maximum sine-wave draw of 45 A at 13.8 V. The fuse is not described as built into the amplifier. Confirm the fuse-holder rating, cable length, and installation route against the owner's manual and the vehicle's electrical conditions rather than treating those numbers as a universal wiring recipe.

For a safe installation, disconnect the negative battery terminal before wiring, mount the amplifier securely, protect the power cable from sharp metal edges, and place the main fuse close to the battery as directed by the manual. Ground the amplifier to a clean, secure chassis point. Keep signal wiring away from high-current power cables where practical, and leave access to the fan and terminals for service. If the source is a factory head unit, confirm whether the high-level input and signal-sensing turn-on method work with that particular vehicle.

Stereo use supports a 2-ohm load on each channel, while bridged operation is rated for a single 4-ohm load. Do not assume that a 2-ohm subwoofer or a dual-voice-coil wiring arrangement is suitable in bridged mode. Calculate the final load from the voice-coil wiring and follow the amplifier's own bridge diagram. If the installation uses multiple amplifiers, size the battery feed, distribution block, grounds, and upstream fuse protection for the whole system.

Its size is a real installation advantage, but it is not an excuse to skip ventilation or clearance checks. The amplifier uses dual-fan cooling in the published product specifications. Leave space for airflow and avoid mounting it where carpet, foam, or loose wiring could block cooling paths. The supplied product information lists a 2-year parts-and-labor warranty; confirm coverage with the authorized seller, especially when buying old inventory or an open-box unit.

Alternatives to the Rockford Fosgate Power T400X2ad

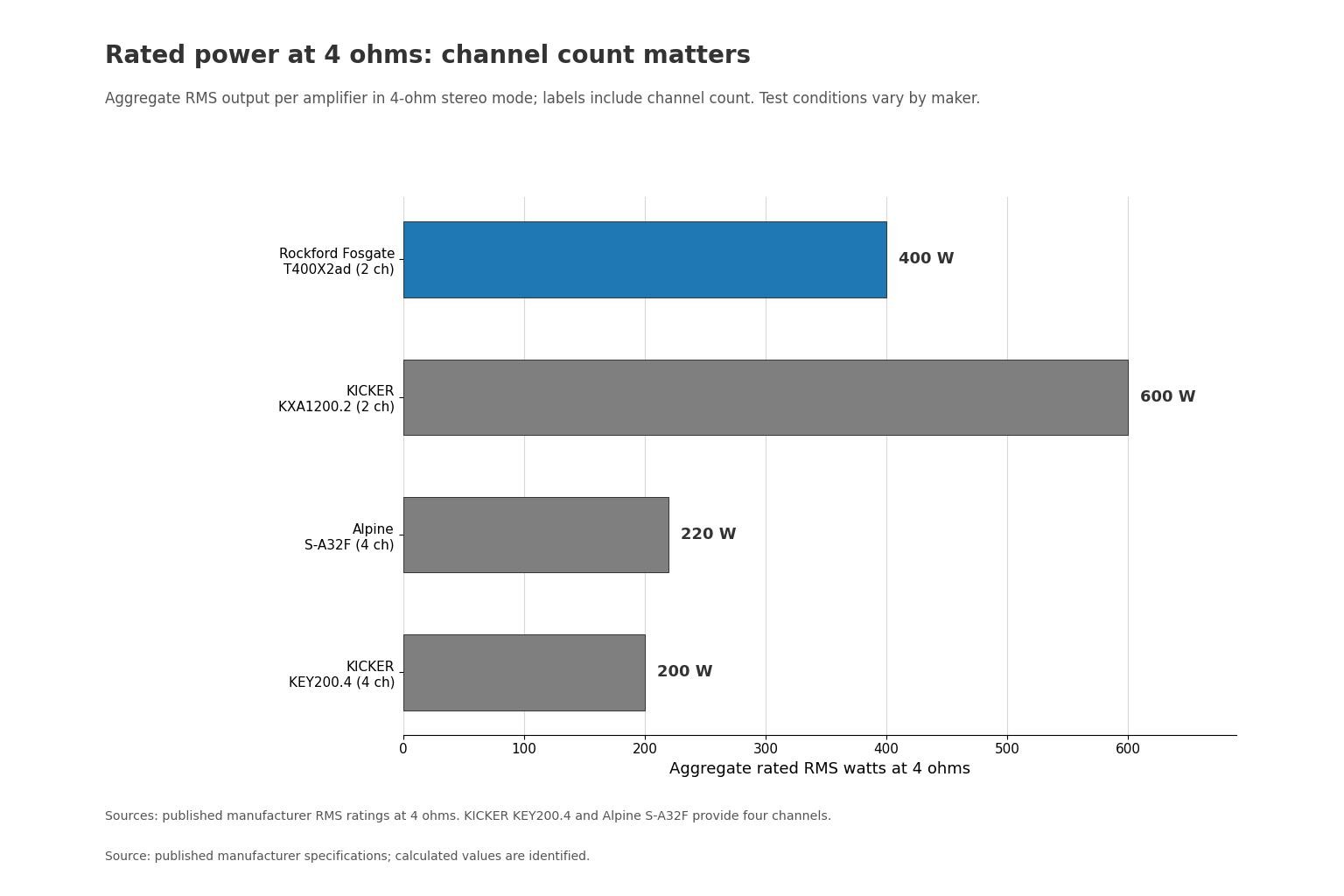

The KICKER KXA1200.2, Alpine S-A32F, and KICKER KEY200.4 are reasonable alternatives for buyers with different priorities. The first keeps a two-channel layout but offers more rated power and a larger chassis. The Alpine and KEY models provide four channels, which can be more useful when powering front and rear speakers from one amplifier rather than concentrating output into two channels.

Model	Published power at 4 ohms	Channels	Useful distinction
Rockford Fosgate Power T400X2ad	200 W × 2; 400 W × 1 bridged	2	Very compact; equal rated stereo output at 2 and 4 ohms; high/low-level input and C.L.E.A.N. indicators
KICKER KXA1200.2	300 W × 2	2	Higher output, larger chassis, variable 24 dB crossover, and 18 dB bass boost
Alpine S-A32F	55 W × 4; 160 W × 2 bridged	4	Four-channel Class-D option for a front/rear speaker system
KICKER KEY200.4	50 W × 4	4	Includes automatic EQ and time-alignment features for factory speaker upgrades

Power numbers are manufacturer-published ratings, and test voltage and THD conditions can differ by model. The table is a buying guide rather than a controlled comparison. The KXA1200.2 is the more relevant choice when greater two-channel output is the primary goal; the Alpine S-A32F or KICKER KEY200.4 fits a different brief if four speaker channels or automated tuning matter more than the T400X2ad's high per-channel output in a compact body.

Price is another dividing line. The KICKER KXA1200.2 is listed by its manufacturer at $649.95, while the KEY200.4 emphasizes signal processing and factory-system integration. Check the current package and required harnesses for each candidate; a lower-priced four-channel amplifier is not a like-for-like substitute if the installation needs 200 W on each of two channels.

Price and pre-purchase checks

The T400X2ad is listed at $459.99 USD at Crutchfield. At that price, its case for purchase rests on compact dimensions, the same rated output at 2 and 4 ohms, flexible high- and low-level inputs, and useful clip indicators. Buyers focused only on watts per dollar should compare newer amplifiers and count the cost of the required fuse, wiring, installation, and any optional remote.

Prices change often, so check the current listing. Before paying, confirm the exact model name is T400X2ad, the warranty is valid in the buyer's region, and the package includes the harnesses needed for the source and speakers. Ask the seller whether it is standard retail packaging or an open-box/used item and check the return terms independently. For a bridge installation, confirm that the intended speaker load is 4 ohms and that the speaker can handle the amplifier's output.

For the product and current listing, the Crutchfield product page is a non-Amazon reference. The supplied Amazon affiliate link may help readers check the exact model, but the article does not quote an Amazon price. See the Rockford Fosgate Power T400X2ad on Amazon.

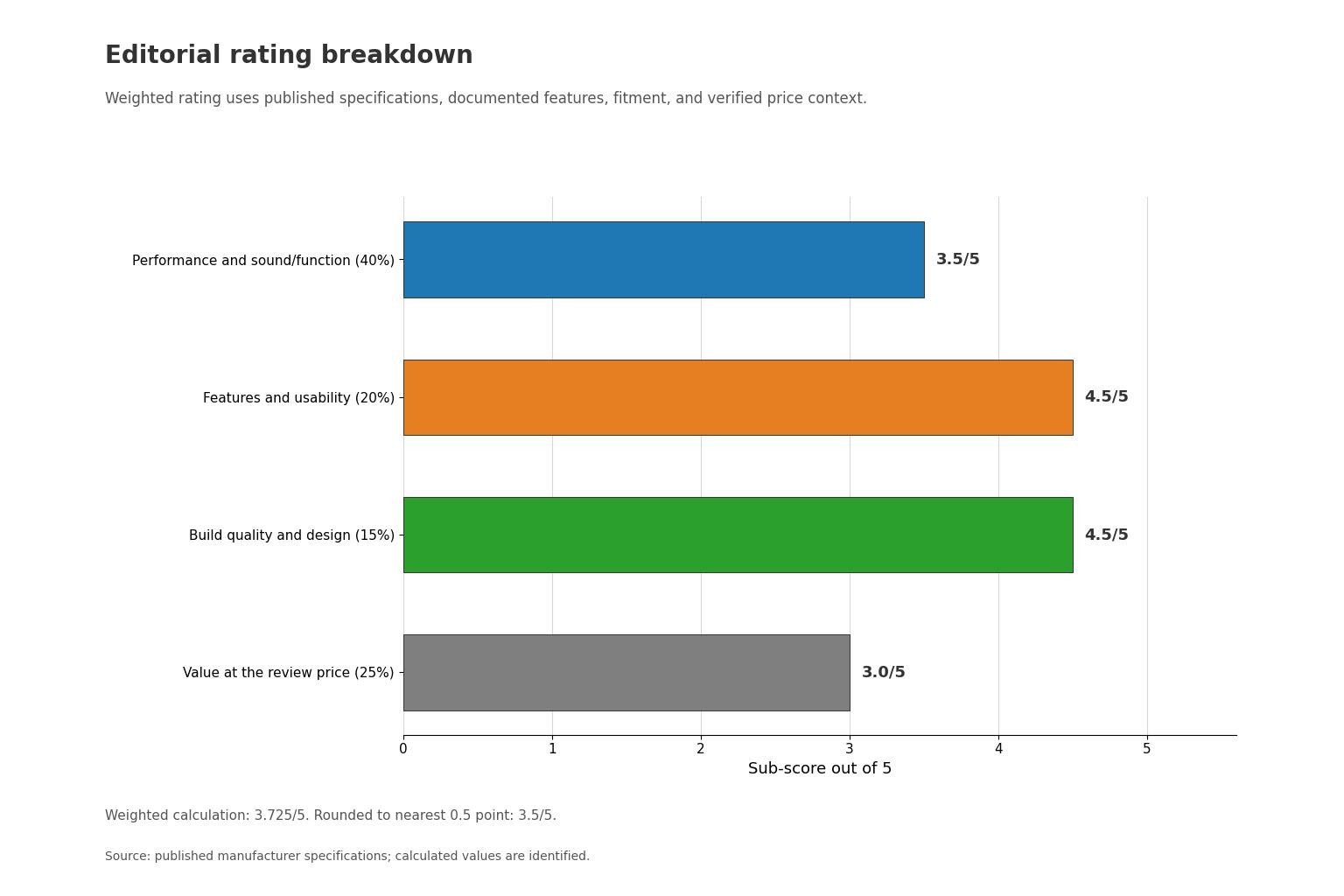

Rating explanation for the Rockford Fosgate Power T400X2ad

The performance/function score reflects strong published stereo output, the bridged mode, and broad frequency response, tempered by the absence of independent lab measurements for this exact model. The features score reflects high- and low-level input support, signal-sensing turn-on, C.L.E.A.N. setup indicators, crossover flexibility, and bass/treble EQ. Build and design score highly because the documented enclosure is notably compact for the rated output and includes active cooling, but the fan layout still requires practical clearance during installation.

Scoring area	Score	Weight	Weighted points
Performance and sound/function	3.5/5	40%	1.400
Features and usability	4.5/5	20%	0.900
Build quality and design	4.5/5	15%	0.675
Value at the review price	3.0/5	25%	0.750
Weighted total	3.725/5	100%	3.725

Our research score is based on the rated figures and documented details above. The weighted total is 3.725 out of 5. Using the nearest half-point scale, 3.725 rounds to 3.5 because it is slightly closer to 3.5 than to 4.0. Value is the weakest area at the verified price: the T400X2ad is a premium compact model, so buyers who have space for a conventional chassis or need only modest power may get better value elsewhere.

Sources and further reading

The following sources support the published specifications, price, alternatives, and historical context used in this review.

• Product specs, warranty, dimensions, and installation figures: Rockford Fosgate regional product specification page.
• Current non-Amazon price and retail product detail: Crutchfield product listing.
• Owner documentation for the compact Power amplifier family: Rockford Fosgate 2016 Power compact amplifier manual index.
• Historical listening comparison and model launch-era dimensions: Mycar-Life editorial listening report.
• Published two-channel alternative specifications: KICKER KXA1200.2 official specifications.
• Published four-channel amplifier ratings: Alpine S-A32F official regional specifications.
• Automatic EQ and time-alignment alternative specifications: KICKER KEY200.4 official specifications.
