Rockford Fosgate P300X1 Review: Full-Range Mono Amp

The Rockford Fosgate Punch P300X1 is worth considering when a system needs a modest-power full-range mono amplifier rather than a subwoofer-only design. This Rockford Fosgate P300X1 review finds a useful combination of 200 watts RMS at 4 ohms, 300 watts RMS at 2 ohms, adjustable high-pass and low-pass filters, and bass and treble EQ. Its main trade-off is Class A/B efficiency: the power rating is sufficient for a modest system, but modern Class-D alternatives can deliver more power from similarly priced hardware. Rockford Fosgate's support index includes the model in its 2013 Punch manual collection, and Crutchfield identifies it as the replacement for the earlier P300-1; no newer direct successor to the P300X1 is confirmed. Crutchfield lists it at $279.99.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

Rockford Fosgate P300X1 design and connections

The P300X1 is a one-channel, full-range amplifier using Class A/B circuitry. Its listed chassis measurements are 2.38 × 7.76 × 9.86 inches when expressed as height × width × depth in the supplied specification. Crutchfield presents the approximate same footprint with width and depth axes reversed, at 9-15/16 inches wide × 7-13/16 inches deep × 2-7/16 inches high. That is consistent with a different orientation convention, but the mounting drawing and cable clearance should be checked before cutting a panel or planning an under-seat installation.

Rockford Fosgate specifies a MOSFET power supply and output stage, convection cooling, captive C-clamp power and speaker terminals, and a one-year manufacturer warranty. The compact full-chassis layout is convenient compared with larger amplifiers, but the enclosure still needs space around it for airflow and service access. The published nominal weight is around nine pounds depending on the listing. This is a full-size component amplifier, not a tiny power pack.

For signal integration, the P300X1 has one pair of RCA inputs and one pair of low-level RCA pass-through outputs. Published input sensitivity extends from 150 mV to 12 V, allowing it to work with a range of source-unit signal levels when wired according to the manual. Crutchfield notes that speaker-level integration may require a suitable speaker-wire-to-RCA adapter. Do not push bare speaker wire into RCA sockets or assume the adapter is included; check the exact wiring approach before installation. The pass-through output can feed another amplifier without using a Y-splitter at the source.

The main connection and control details can be checked in Crutchfield's P300X1 specifications. For a subwoofer installation, the key limitation is the minimum rated load of 2 ohms. Unlike the P500X1bd, the P300X1 is not specified for a 1-ohm load.

Buyers can view the P300X1 product listing after checking the exact model, included wiring accessories, and warranty terms.

Rockford Fosgate P300X1 power and performance

The rated continuous output is 200 watts RMS × 1 at 4 ohms or 300 watts RMS × 1 at 2 ohms. Rockford Fosgate identifies the figures as CTA-2006 compliant in the supplied specification, a useful signal that the output ratings follow an industry test standard rather than a peak-power headline. The amplifier is not bridgeable, and there is no rated 1-ohm output figure. The rating should therefore be matched to the speaker's nominal impedance and recommended amplifier range, not treated as a promise that any wiring arrangement is safe.

The stated frequency response is 20 Hz to 20 kHz, ±1 dB, much wider than the typical low-frequency range of a subwoofer-only amplifier. This supports its intended flexibility as a dedicated subwoofer amp or, when the filtering and system design suit it, a mono amp for a center-channel or other single speaker. It does not turn a single channel into a multi-channel surround amplifier: it still provides only one amplified output channel.

Rockford Fosgate specifies total harmonic distortion plus noise below 1.0% at 4 ohms and 2 ohms and an average efficiency of 74% at 4 ohms. Those are rated specifications, not independent measurements of a particular sample. Our research found no independent lab measurements for this model. For context, the published current figures are 23 A average music draw and 45 A maximum sine-wave draw at 13.8 V. Those are different operating conditions, so the maximum sine-wave number should not be mistaken for normal continuous music draw.

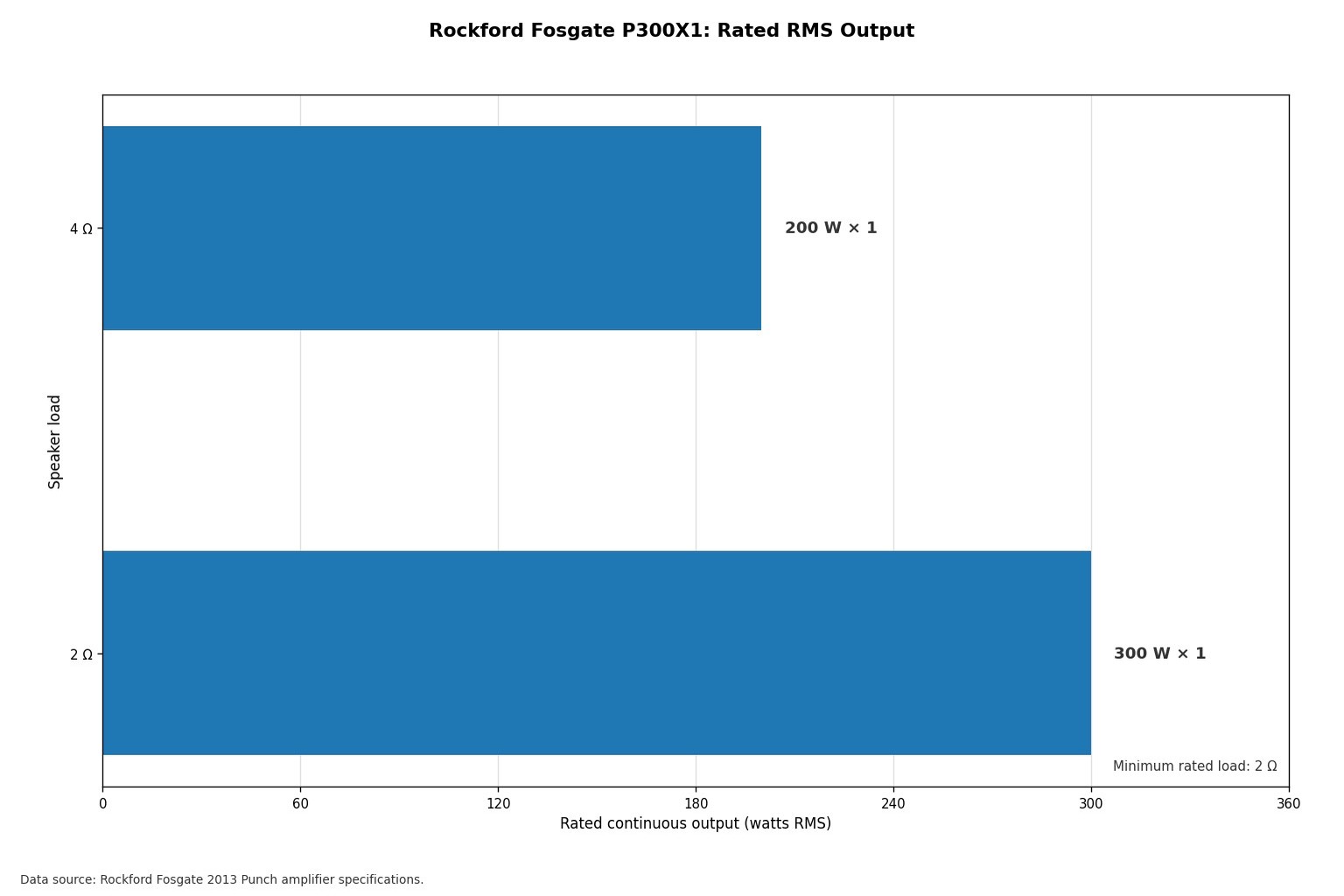

The chart below uses only the rated continuous output figures. It makes the load dependence visible: moving from a 4-ohm to a 2-ohm load raises the nominal rating from 200 W to 300 W, provided the connected speaker load and wiring stay within the amplifier's specifications.

Rockford Fosgate P300X1 features and daily usability

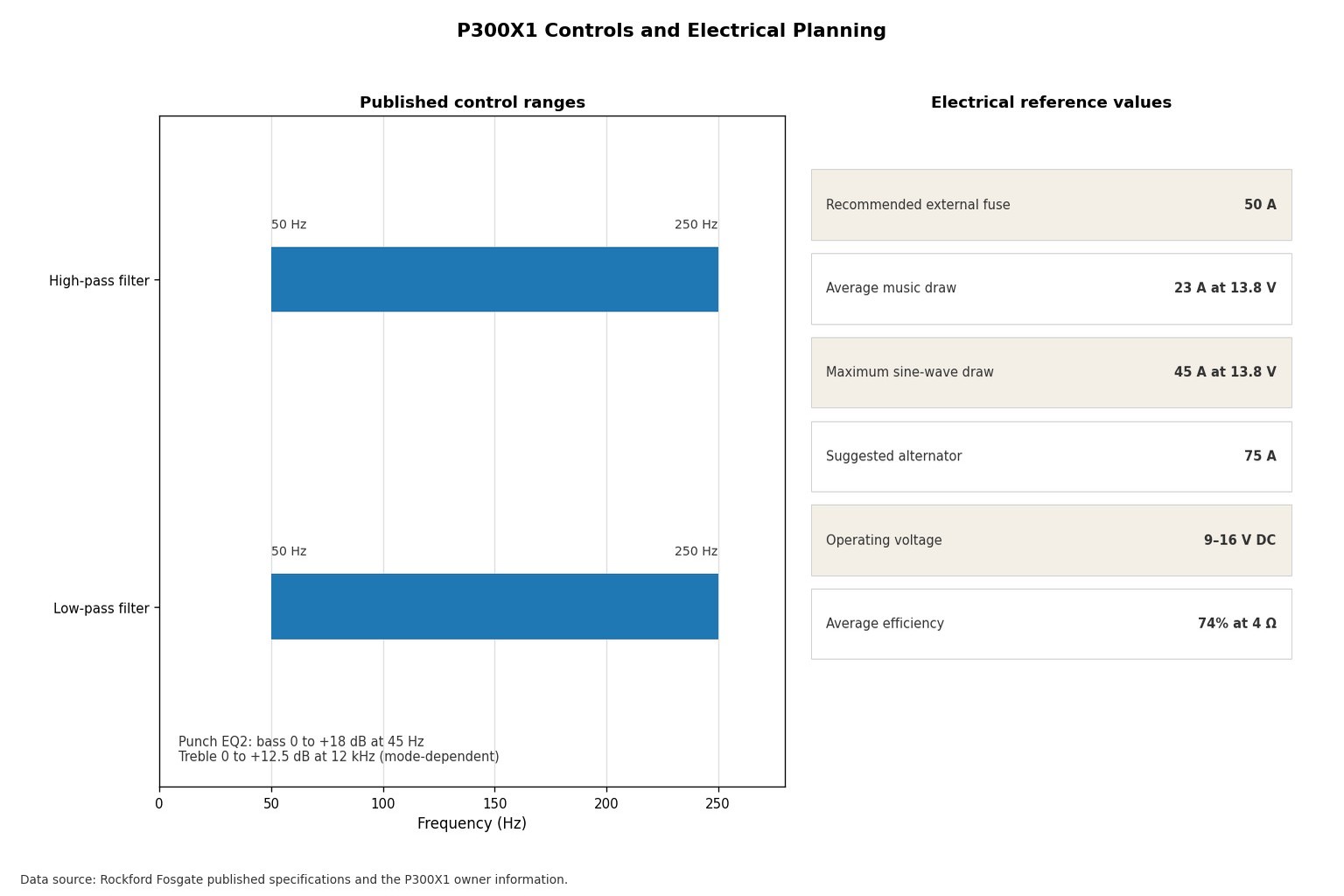

The standout feature is not simply the 300-watt headline; it is the control range for a full-range mono amp. The low-pass filter covers 50–250 Hz with a 12 dB-per-octave Butterworth slope, while the high-pass filter covers the same range. An all-pass mode is also listed. A low-pass setting can direct higher frequencies away from a subwoofer, while a high-pass setting can protect a small speaker from deep bass if this amp is assigned to a suitable full-range or center-channel role.

Punch EQ2 provides bass adjustment from 0 to +18 dB at 45 Hz and treble adjustment from 0 to +12.5 dB at 12 kHz, depending on the LP/AP/HP switch setting. These are large potential boosts, so they should be used sparingly. A strong EQ boost demands additional amplifier output and can cause clipping or excessive excursion if gain and speaker limits are ignored. A sensible setup starts with EQ flat, the crossover selected for the speaker/enclosure, and gain set using a reliable source level and the manufacturer's C.L.E.A.N. setup guidance.

Power, protect, and thermal indicators offer basic status feedback, while clip indicators for input and output help guide level setup. An optional PLC2 wired Punch Level Control is supported, but the remote is an extra accessory rather than a guaranteed included item. Buyers should include the cost of an appropriate power kit, fuse, adapters, and remote if desired in the total system budget. The filter, EQ, and electrical values are summarized in the controls reference graphic earlier in this review.

Rockford Fosgate P300X1 installation and safety checks

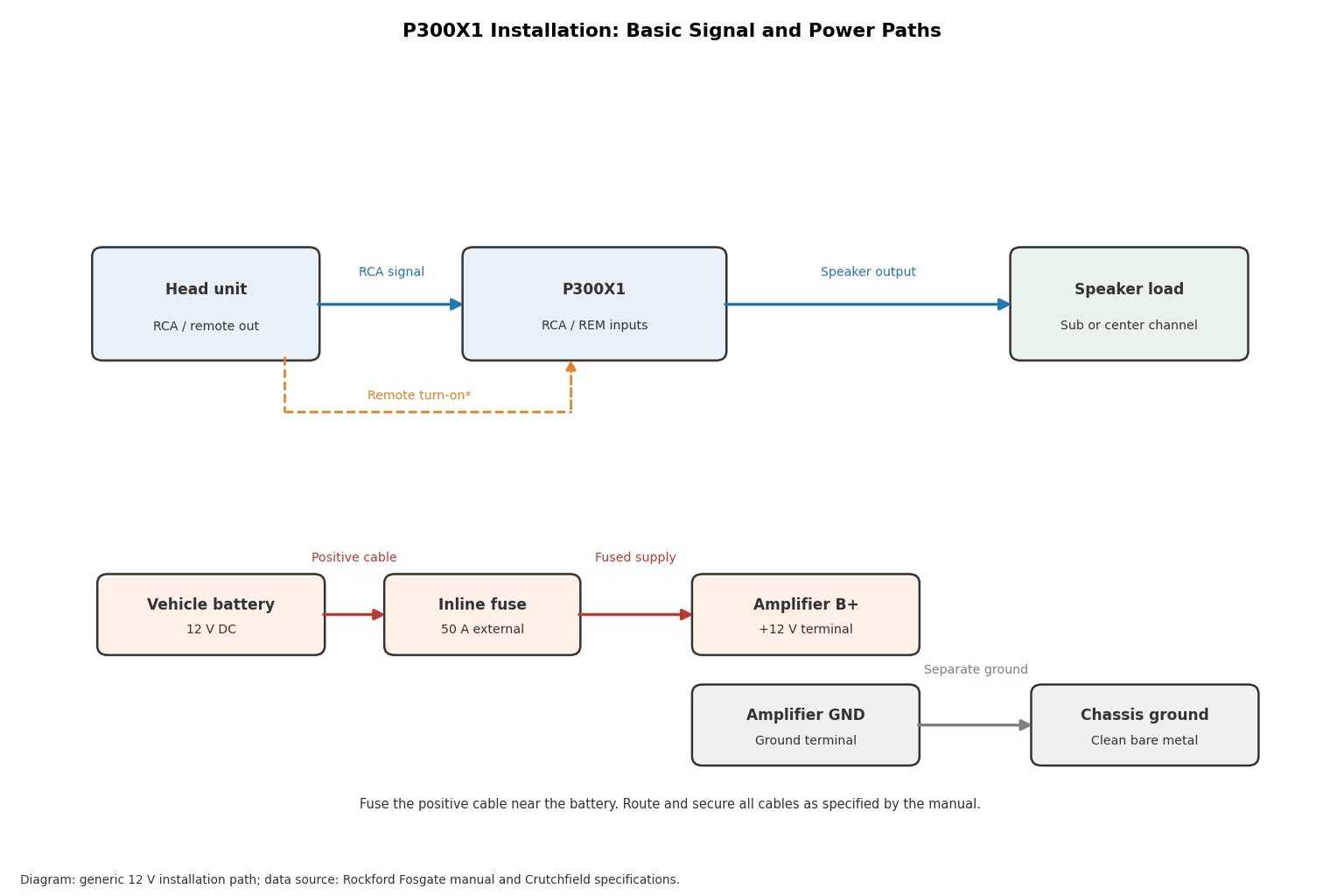

The supplied specifications call for a 50 A fuse, 23 A average music current at 13.8 V, 45 A maximum sine-wave current at 13.8 V, and a suggested 75 A alternator. The fuse is not included. Fuse the positive cable close to the battery, use cable gauge appropriate to run length and current, make a secure low-resistance chassis ground, and protect the cable wherever it passes through metal. Follow the vehicle and amplifier manuals for grounding, cable routing, and protection against shorts. Do not choose a fuse solely to match an online peak-watt figure.

The P300X1 terminal information allows power-cable sizes ranging from 8 AWG to 4 AWG in the supplied specification, but the appropriate cable depends on the installation and cable run. Crutchfield specifically describes an 8-gauge power and ground lead with an external 50 A fuse. Use the manufacturer's installation diagram and applicable local electrical practices if a long cable run, multiple amplifiers, or a factory electrical system is involved.

Before wiring a dual-voice-coil or multiple-subwoofer system, calculate the final nominal load. Parallel voice coils can lower impedance; series wiring raises it. This amp is rated at 2 ohms minimum, so a 1-ohm final load is outside the published rating. Also verify the subwoofer's RMS power recommendation, enclosure tuning, and the intended crossover mode. For center-channel duty, check speaker impedance and ensure that the system can deliver the full-range signal required; a mono output is not a substitute for left/right or multichannel processing.

How the P300X1 compares with alternatives

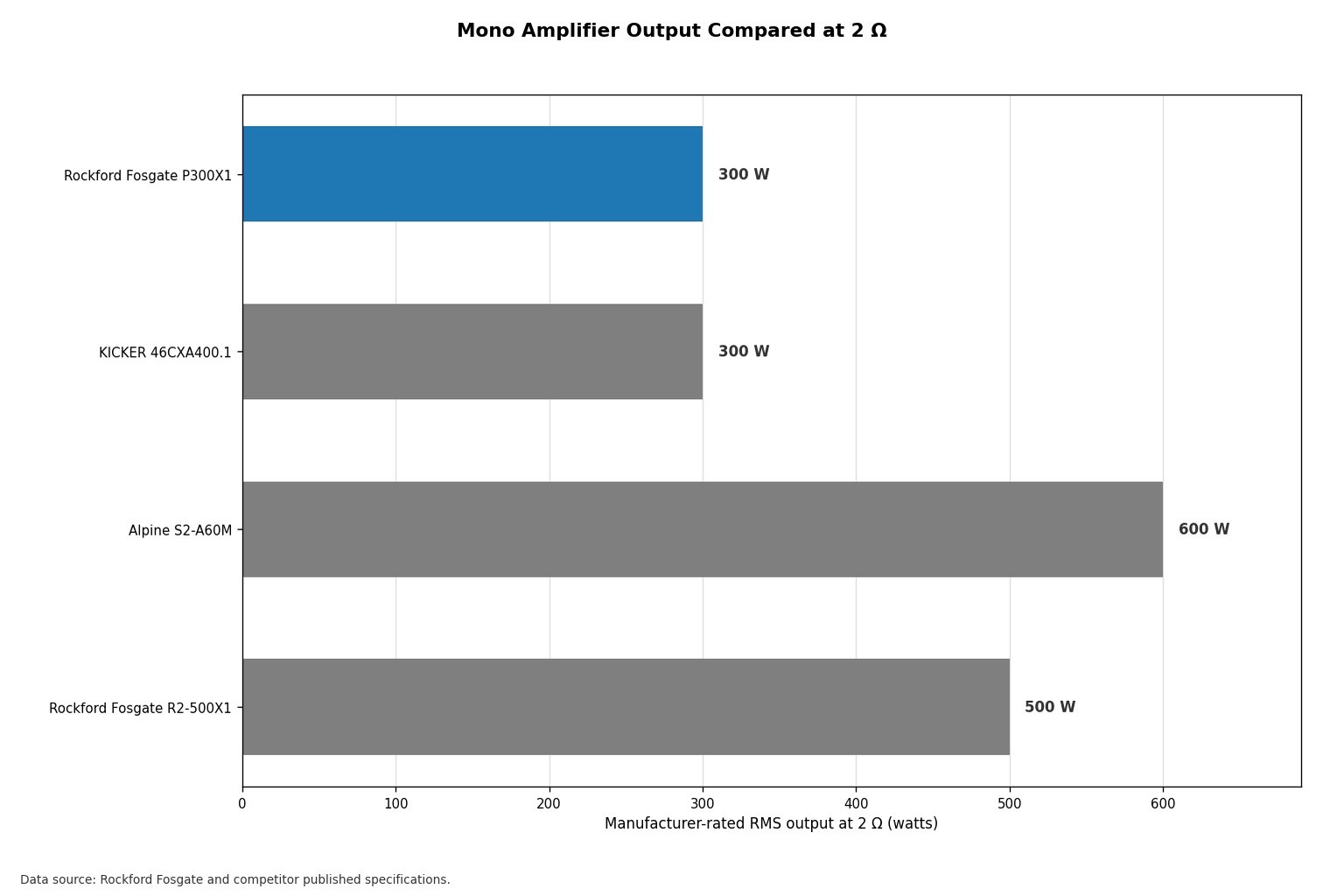

Comparable models include the KICKER 46CXA400.1, Alpine S2-A60M, and Rockford Fosgate R2-500X1. The table compares their published RMS output into a 2-ohm load, where all four have a listed rating. Voltage and distortion conditions vary by manufacturer, so the numbers are useful for screening candidates rather than a controlled bench ranking.

Model	Rated RMS at 2 Ω	Amplifier class / emphasis	Price reference
Rockford Fosgate P300X1	300 W × 1	Class A/B; full-range mono with high/low-pass filtering and bass/treble EQ	$279.99
KICKER 46CXA400.1	300 W × 1 at 14.4 V, ≤1% THD+N	Class D; subwoofer amp, 1-ohm capable	Not confirmed for this exact model number
Alpine S2-A60M	600 W × 1 at 14.4 V, under 0.1% THD+N	Class D; higher power, subwoofer focus	$299.95
Rockford Fosgate R2-500X1	500 W × 1 at 2 Ω	Class D; dedicated subwoofer amp with subsonic filter and remote level control	$309.99

The P300X1's strongest advantage over these subwoofer-focused Class-D models is its wider full-range role, including treble EQ and high-pass operation. If a subwoofer-only system is the goal, the KICKER offers the same published output at 2 ohms for less money, while the Alpine and Rockford Fosgate Prime models provide higher rated output for a modest price increase. Those alternatives do not exactly duplicate the P300X1's full-range flexibility, and final selection should be based on use case, load, control needs, and fitment rather than wattage alone.

Who should buy the Rockford Fosgate P300X1?

The P300X1 fits buyers who need 200 watts at 4 ohms or 300 watts at 2 ohms, prefer a full-range mono channel, and want adjustable high-pass and low-pass filtering plus both bass and treble controls. It can make sense for a modest subwoofer setup or a suitable center-channel application where one mono channel is exactly what's needed. Its input range and pass-through output also help when planning around existing source equipment and another amplifier.

Skip it if the subwoofer presents a 1-ohm final load, if the system needs more than 300 watts at 2 ohms, or if minimizing electrical current and chassis heat is the main priority. A Class-D mono model may be the better choice for subwoofer-only duty, particularly if it offers the required power at a lower price. It is also not a fit for users expecting a bundled remote or wiring kit; verify the package contents before checkout.

Price and pre-purchase checks for the Rockford Fosgate P300X1

The verified reference price is $279.99 USD at Crutchfield. Compare the total system cost rather than the amplifier alone: a suitable wiring kit, external fuse, any high-level input adapter, optional PLC2 remote, and installation labor may add to the budget. Prices change often, so check the current listing.

Confirm that the item is the P300X1, not an older P300-1 or the P300X2 two-channel model. Crutchfield identifies the P300X1 as the replacement for the earlier P300-1 model, but that retailer-stated lineage does not confirm a newer direct successor to the P300X1. Rockford Fosgate's support page includes a 2013 Punch amplifier manual specifically listing the P300X1. No separate newer direct successor to the P300X1 was confirmed. The manufacturer's support index still provides its model-specific 2013 owner documentation.

Check the final speaker impedance, mounting orientation, cable exit clearance, warranty terms, included mounting hardware, and whether the seller supplies the exact accessory pack shown. The dimension orientation differs between sources, so verify the manual diagram against the physical space. Buyers outside the US should also verify regional warranty coverage and voltage/wiring compatibility with a qualified installer.

For the current product listing, check the P300X1 and its package details against the exact model requirements before purchase.

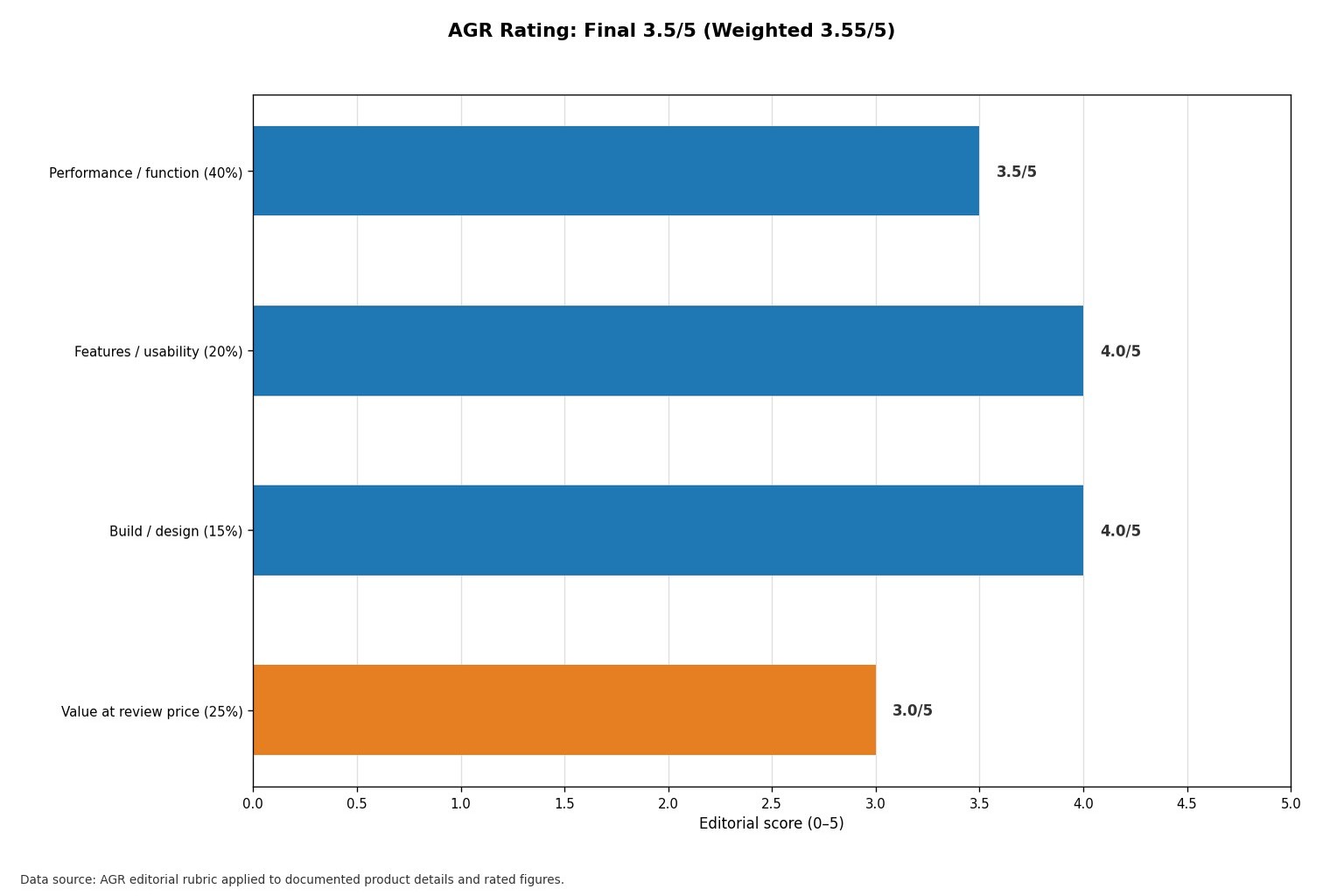

How the Rockford Fosgate P300X1 rating was calculated

The rating is conservative because the amplifier combines flexible controls and credible published ratings with moderate output, a Class A/B design, and a price that competes with higher-powered Class-D products. The sub-scores are weighted using the AGR rubric. The weighted result is 3.55 out of 5; the nearest half-point rating is 3.5 out of 5.

Rating area	Score	Weight	Weighted contribution
Performance and function	3.5/5	40%	1.40
Features and usability	4.0/5	20%	0.80
Build quality and design	4.0/5	15%	0.60
Value at the review price	3.0/5	25%	0.75
Weighted total	3.55/5		Final: 3.5/5

Our research score is based on the rated figures and documented details above.

Sources and further reading

• Crutchfield P300X1 product page (price, power, filters, dimensions, accessory and installation notes).
• Rockford Fosgate 2013 Punch manual index (official model identification and installation-document access).
• KICKER 46CXA400.1 technical sheet (rated output at 14.4 V, load compatibility, and crossover details).
• Alpine S2-A60M product specifications (RMS output, price, frequency range, and feature set).
• Rockford Fosgate R2-500X1 retailer specifications (comparison power, load, controls, and price reference).
• Crutchfield P300-1 legacy model page (retailer-stated replacement lineage and predecessor specifications).
• Pioneer GM-DX871 product specifications (example of a higher-output Class-D mono alternative and published load ratings).
