Rockford Fosgate T2S1-13 Review: Big Excursion, Hefty Price

This Rockford Fosgate T2S1-13 review covers a big, heavy, single 1-ohm 13-inch subwoofer with an unusually long published excursion figure (34 mm one way). On paper it is competitive for a driver priced at $1,099.99. It is a current Rockford Fosgate product, and the manufacturer page names no successor. It is worth considering if you want one high-power woofer, own or plan a 1-ohm-stable mono amplifier, and can buy from an authorized Rockford dealer so the warranty applies. It is a poor fit for small boxes, light cars or buyers who need independent output measurements, because none are available for this model.

Rockford Fosgate T2S1-13 design and build

Rockford calls the 13 inches the total effective radiating area, which includes the surround. The cone's piston area is 707 cm², equivalent to a disc about 30 cm (11.8 in) across, so the driver is physically closer to a 12-inch than a 13-inch in the usual sense. The mounting cutout is 12.28 in (312 mm), the overall diameter is 14.73 in (374 mm) and the mounting depth is 9.70 in (246 mm).

The cone is a three-layer glass fiber, aramid honeycomb and glass fiber sandwich with an aluminum dustcap. Rockford lists an injection-molded foam surround attached with its VAST technique, a mechanical clamping ring on the surround, dual Nomex progressive spiders with stitched tinsel leads, a die-cast aluminum frame with heat-sink fins, a vented pole piece and a triple-stack segmented ferrite motor with a 528 oz (14.97 kg) magnet. The voice coil is a single-layer edge-wound aluminum coil of about 4 inches (3.96 in or 100 mm on the product page) on an anodized aluminum former, with an inductive damping heat sink above the motor. Rockford says the power ratings follow CEA-2031 and that the design is verified with Klippel. Both are manufacturer statements.

Weight matters here. Rockford gives a shipping weight of 93.7 lb (42.5 kg), and the manual says the driver ships bolted to a wood baffle for support; you remove the trim ring to reach the screws. Rockford's page jokes that it is heavier than Atlas, which is marketing, but plan a two-person lift.

T2S1-13 features, wiring and usability

The T2S1-13 is a single-voice-coil design with a nominal 1-ohm impedance and a DC resistance of 0.9 ohm. That keeps wiring simple, but it ties you to an amplifier that is stable at 1 ohm or lower. The terminals are push-spring, accept 8 AWG wire and are insulated. The FlexFit basket has slotted mounting holes, so you can shift the driver's position slightly in the baffle. The box holds 12 mounting screws, four trim-ring screws, a socket-head driver bit and the manual.

Rockford publishes wiring diagrams for up to four of these drivers. The loads below are series and parallel arithmetic for 1-ohm coils (calculated), and they match the diagram titles on Rockford's page.

Number of subs	Wiring	Load seen by the amplifier
1	Single	1 ohm
2	Parallel	0.5 ohm
2	Series	2 ohms
3	Parallel	0.33 ohm
4	Parallel	0.25 ohm
4	Series-parallel	1 ohm

Check your amplifier's minimum stable impedance before choosing any of these. The warranty is one year. It covers only the original purchaser of a product sold by an authorized Rockford dealer in the United States, and the claim needs a receipt showing the dealer name and purchase date.

T2S1-13 sound and performance from the rated figures

Our research found no independent lab measurements for this model. Everything below comes from Rockford's published numbers and from arithmetic on them, so read it as a guide to what the specifications imply, not a verdict on sound.

Fs is 25 Hz and Qts is 0.34. Dividing Fs by Qes (0.39) gives an efficiency bandwidth product of about 64, a range where either a sealed or a vented box can work, and Rockford recommends both. The published excursion is large: Xmax of 34 mm over a 707 cm² piston gives a one-way displaced volume of about 2.4 L (calculated). The manual lists a 19 to 250 Hz frequency response without stating the conditions.

Sensitivity is modest. Rockford lists 87 dB at 1 W and 1 m. Our calculation from the rated figures shows an efficiency of about 86.5 dB using Fs, Vas and Qes, which supports that number. Rockford also lists 90 dB at 2.8 V, but 2.8 V across the 0.9-ohm DC resistance is about 8.7 W, so the two figures use different references and do not reconcile. The 87 dB figure is the one used here. If the amplifier delivered its full headline rating, the rated figures work out to roughly 117 dB at 1 m from 1,000 W, 118.8 dB from 1,500 W and 120 dB from 2,000 W in an idealized free-field case. Real cars add cabin gain, and real drivers lose output to heat, so treat these as ceilings.

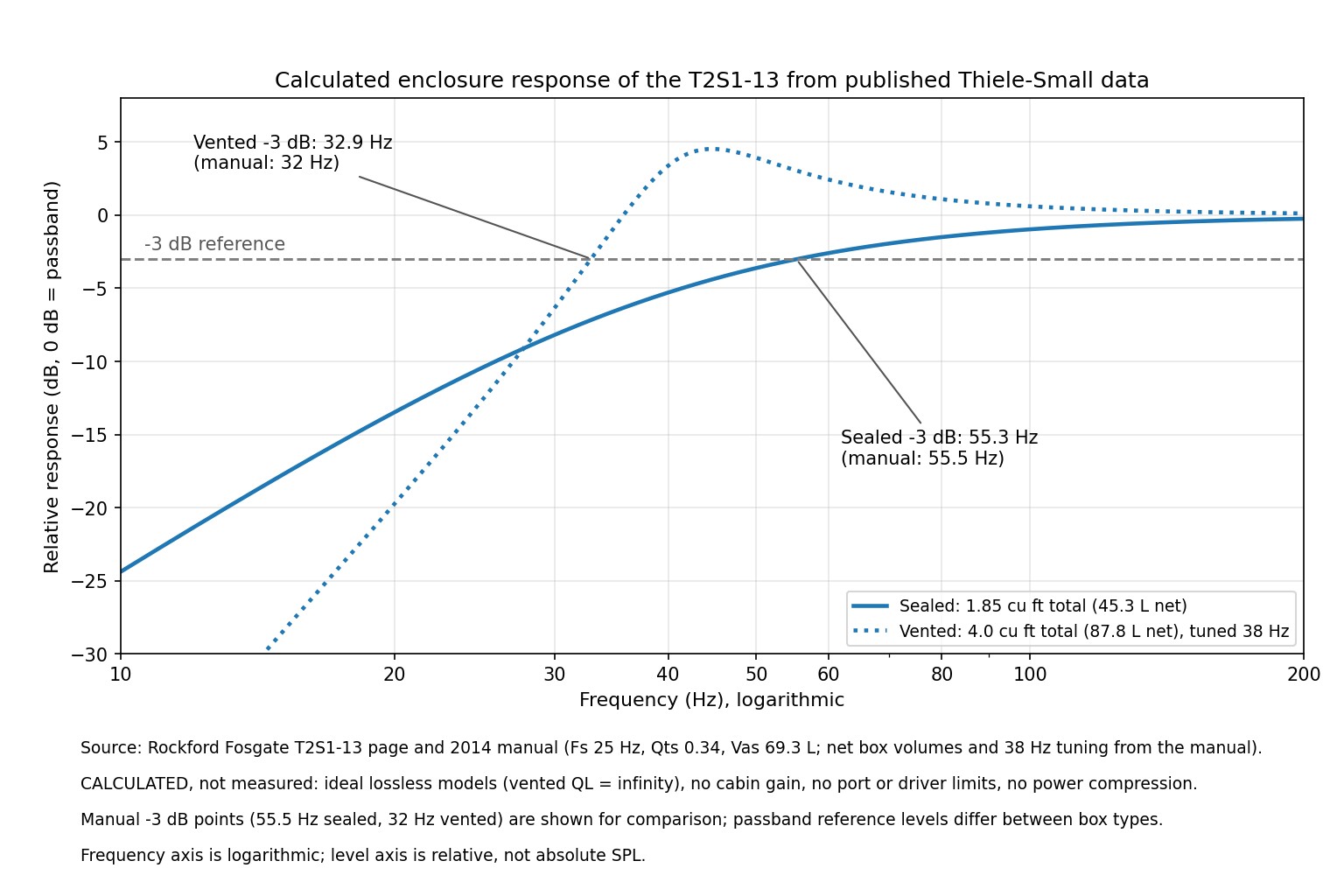

Rockford's own enclosure recommendations show the trade-off. The sealed box has 1.85 cu ft of total internal volume, which is about 45.3 L net after subtracting the 7.08 L driver displacement. With those figures the rated figures work out to a Qtc of 0.54, the same value the manual lists, and a -3 dB point near 55 Hz. The manual gives 55.5 Hz. The vented box is 4.0 cu ft total, about 2.2 times the sealed volume, tuned to 38 Hz with a -3 dB point of 32 Hz in the manual. Deeper extension therefore costs a much bigger enclosure. For vented use, the manual calls for a subsonic filter, and it recommends an active 80 to 100 Hz low-pass at 12 dB per octave.

T2S1-13 installation checklist and enclosure sizes

Rockford recommends installation by an authorized dealer. If you do it yourself, treat this as a summary and read the manual.

• Disconnect the battery negative before any wiring.

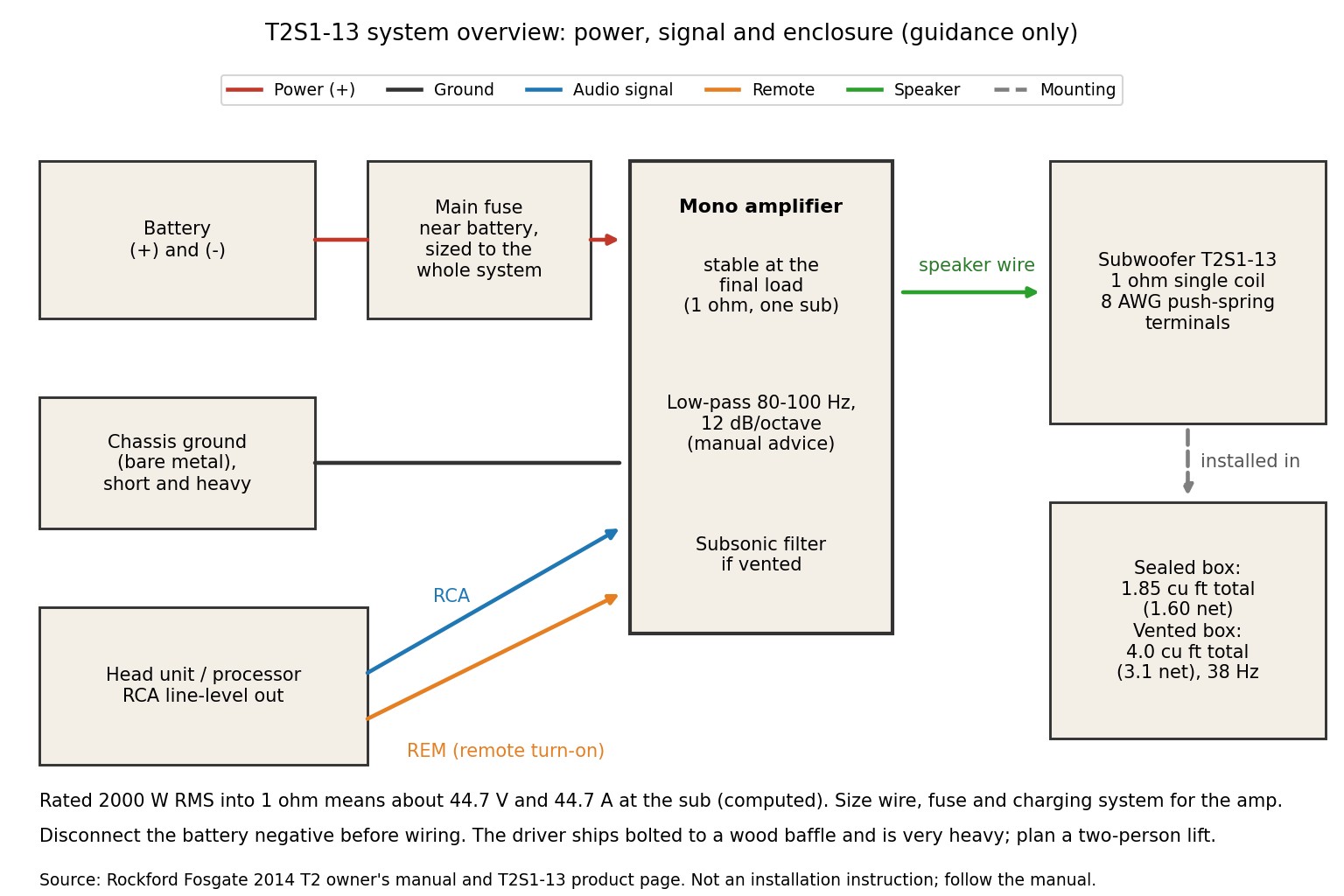

• At 2000 W RMS into 1 ohm, the driver sees about 44.7 V and 44.7 A (calculated). The amplifier asks far more of the car: at an assumed 75 percent efficiency, roughly 185 A from a 14.4 V system at full continuous power. Music rarely holds that level, but size the power wire, main fuse and charging system for the amplifier, and fuse the positive cable close to the battery.
• Build the box from 1-inch MDF with bracing and airtight seams. The manual's sealed design is 16 x 20 x 14.5 in external; the vented design is 16 x 38 x 16 in with a 14 x 3 x 20.5 in slot port, both using 1-inch material. Rockford gives a workable sealed range of 1.00 to 2.00 cu ft. Subtract the driver displacement of 0.25 cu ft, and the port displacement of 0.65 cu ft for the vented design, when sizing.
• Use all 12 mounting screws on a rigid baffle. The driver is heavy and can stress thin panels.
• Subwoofers this powerful can produce harmful sound levels. The manual warns that high-powered systems can pass 130 dB, and that continuous exposure above 100 dB can cause permanent hearing loss.

Use this fitment checklist before ordering.

Check	Rockford figure	What to confirm
Mounting depth	9.70 in (246 mm)	Baffle thickness plus driver depth fits behind the seat or in the trunk
Cutout diameter	12.28 in (312 mm)	Cutout sized to the manufacturer figure, not the nominal 13 in
Magnet diameter	10.47 in (266 mm)	Clearance inside the box and around braces
Weight	93.7 lb shipping	Floor and mounting points can carry the finished box
Impedance	1 ohm single coil	Amplifier is stable at the load you plan to wire

Rockford's page pairs the sub with its T1000-1bdCP and T1500-1bdCP mono amplifiers. Both are rated below the sub's 2000 W RMS figure, which is workable if you accept not using the driver's full capability. The sub's rating is a ceiling, not a target, and the amplifier's rated output at your chosen impedance is worth checking in its own manual.

T2S1-13 vs Rockford Fosgate T2S1-16 vs JL Audio 13W7AE-D1.5 vs Sundown Audio X-15 v.3 D1

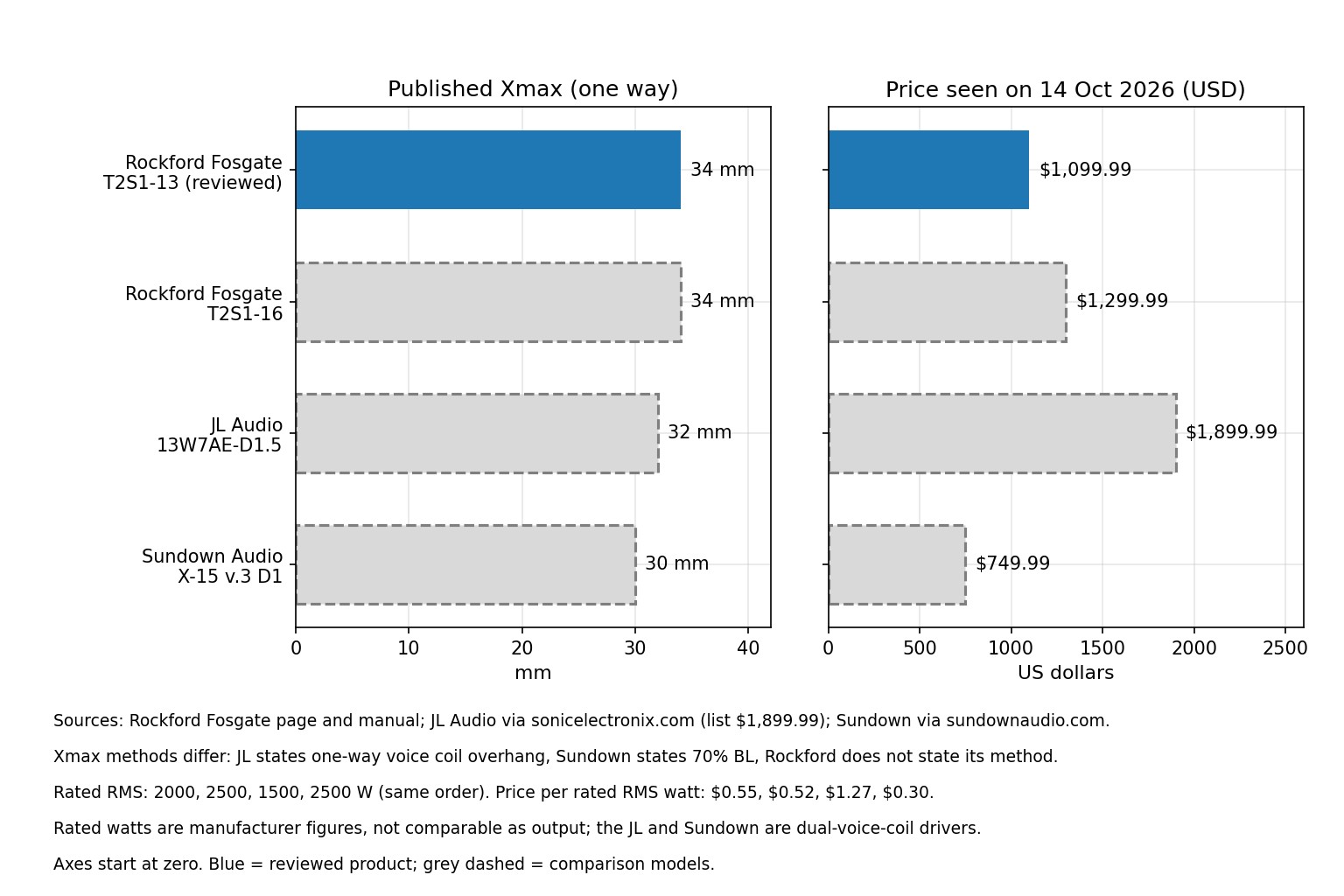

Three alternatives frame the comparison: the Rockford Fosgate T2S1-16, the JL Audio 13W7AE-D1.5 and the Sundown Audio X-15 v.3 D1. All figures are manufacturer or retailer specifications. The JL Audio and Sundown Audio drivers use dual voice coils and rate power differently, so watts are not directly comparable.

Spec	Rockford Fosgate T2S1-13 (reviewed)	Rockford Fosgate T2S1-16	JL Audio 13W7AE-D1.5	Sundown Audio X-15 v.3 D1
Nominal size	13 in	16 in	13.5 in	15 in
Voice coil	Single, 1 ohm	Single, 1 ohm	Dual 1.5 ohm	Dual 1 ohm
Power RMS / peak	2000 / 4000 W	2500 / 5000 W	1500 W RMS	2500 / 5000 W (current Sundown Audio rating)
Fs	25 Hz	28.5 Hz	23.5 Hz	29.9 to 31.4 Hz (page lists two data sets)
Qts	0.34	0.49	0.448	0.41 to 0.49 (page lists two data sets)
Xmax (one way)	34 mm	34 mm	32 mm	30 mm
Recommended sealed volume	1.85 cu ft total	2.40 cu ft total	1.875 cu ft	Not recommended; 4.25 cu ft ported
Price seen	$1,099.99	$1,299.99	$1,899.99	$749.99
Price per rated RMS watt (calculated)	$0.55	$0.52	$1.27	$0.30

The T2S1-13 sits between the budget and premium options. The Sundown Audio X-15 v.3 D1 is cheaper per rated watt, but it is a larger 15-inch dual-voice-coil design aimed at small ported boxes, its page says sealed use is not recommended, and Sundown Audio states that it has updated its subwoofer power ratings. The JL Audio 13W7AE-D1.5 costs noticeably more and rates lower in power, but its dual 1.5-ohm coils give more wiring options. The Rockford Fosgate T2S1-16 brings more rated power and a larger cone for about $200 more, with the same 34 mm Xmax and a larger box.

Who should buy the T2S1-13 and who should skip it

It suits builders who want one high-excursion 13-inch driver, plan a 1-ohm mono amplifier, have a rigid enclosure and can buy from an authorized dealer. Skip it if you need a light, shallow driver, a small sealed box with deep extension, dual voice coils for flexible wiring, or measured output data before buying. Skip it also if your amplifier is not stable at 1 ohm, or if you cannot confirm that the seller is authorized, since warranty coverage depends on that.

T2S1-13 price and where to buy

On 14 October 2026, Rockford's product page listed the T2S1-13 at $1,099.99. The same page showed a notify-me form and a "currently unavailable" status next to a buy button, so stock at the manufacturer is unclear. A retailer listing seen the same day also showed $1,099.99 and an in-stock label. Prices change often, so check the current listing.

Before paying, run through these checks:

• Model: confirm T2S1-13 (1 ohm), not the 2-ohm T2S2-13, which is a separate listing at a similar price.
• Seller: Rockford's warranty covers only products bought from authorized Rockford dealers in the United States, so confirm the seller's status first.
• Condition: some retailers also list used units, which the original-purchaser warranty does not cover.
• Paperwork: keep the receipt and serial number, since both are needed for a warranty claim.
• Shipping: Rockford lists the sub as an oversized freight item with signature required, so check delivery terms.

Budget for the rest of the system: a 1-ohm-stable mono amplifier, heavy-gauge power and ground cable, a main fuse, a rigid MDF enclosure, a subsonic filter if vented, and professional installation if you are not confident with high-current wiring.

Final verdict and score

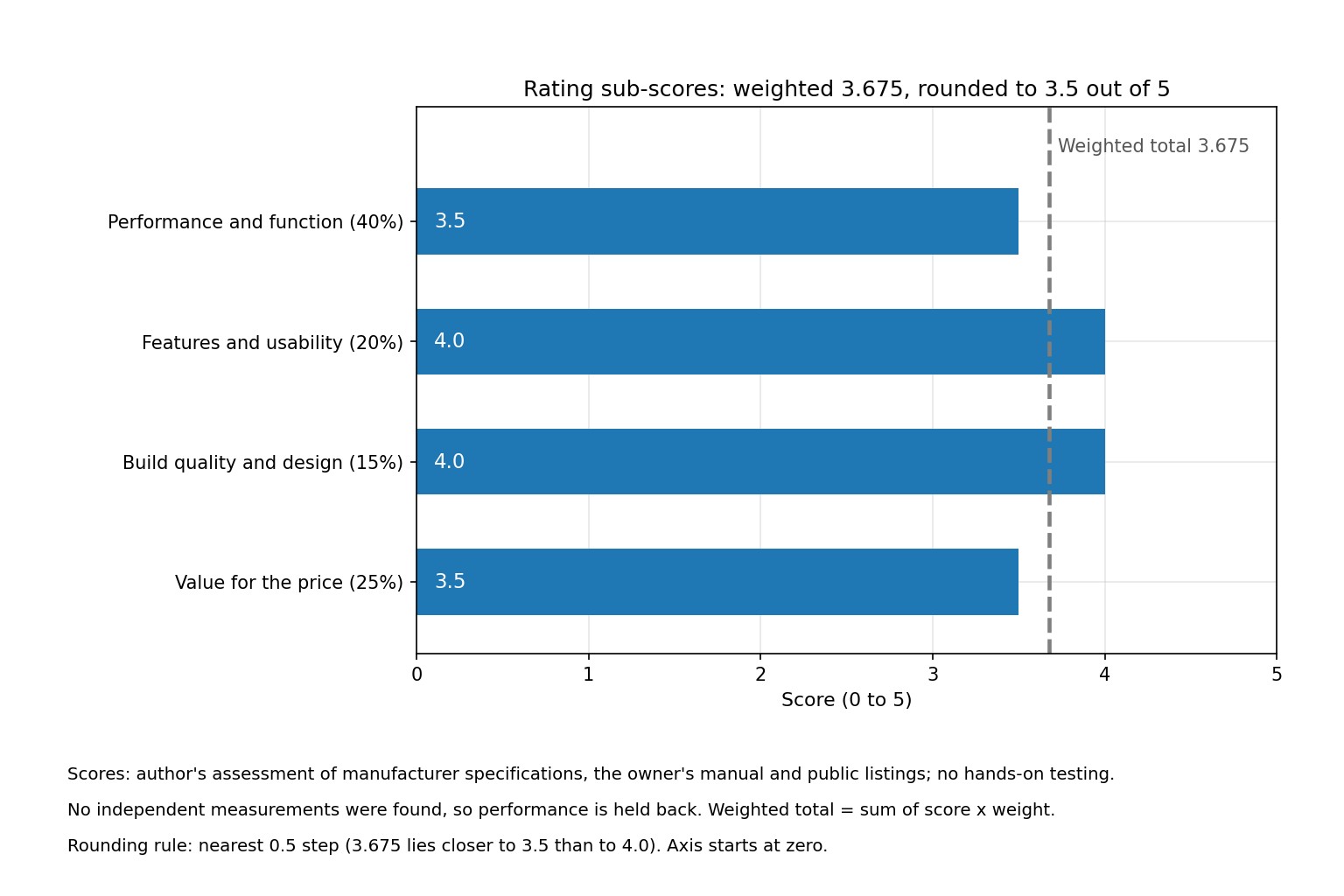

The Rockford Fosgate T2S1-13 scores 3.5 out of 5. The rubric weights performance and function at 40 percent, features and usability at 20 percent, build quality and design at 15 percent and value at 25 percent. The weighted score is 3.675, rounded to the nearest half point. Our research score is based on the rated figures and documented details above. The Verdict, Pros and Cons panels on this page summarize the conclusions.

Criterion	Weight	Score	Weighted points	Basis
Performance and function	40%	3.5	1.400	Strong published Xmax and T/S data; no independent output measurements available
Features and usability	20%	4.0	0.800	Dual spiders, 8 AWG terminals, FlexFit, full box and wiring data
Build quality and design	15%	4.0	0.600	Die-cast frame, heat sink, large motor; durability rests on manufacturer claims
Value for the price at review	25%	3.5	0.875	$1,099.99 sits between the Sundown Audio and JL Audio prices; one-year warranty, dealer-only
Total	100%		3.675	Rounded to 3.5
